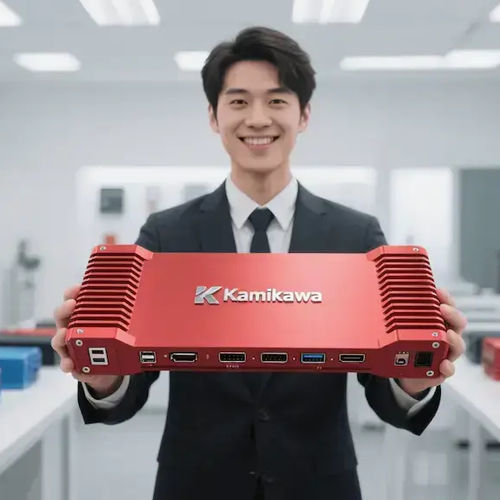

Aluminum electrical enclosure

distributioncontrolswitching

Product overview
Our aluminum alloy enclosure is manufactured from industrial‑grade alloy with controlled smelting and extrusion processes. It provides a lightweight, rigid protective shell for electronic assemblies and industrial components. Standard profiles are available or we can deliver fully customized units; single‑piece prototype orders are supported.

We offer over 400 different sizes of extruded aluminum enclosures. All specifications require no additional mold costs, MOQ 1PC, and our prices are at least 30% cheaper than our competitors.

You can directly download the Extruded Aluminum Enclosure drawings (without copyright restrictions) suitable for your products from our official website (Electronic-Enclosure) | 3D Model Library.

Our website features an online interactive 3D model viewing function, allowing you to view 3D models via mobile phone, computer, or mobile device. It supports quick online product specification searches, 3D drawing downloads, likes and comments, and online inquiries. Welcome to visit our official website.

Key Features

• Industrial high‑purity aluminum alloy with stable mechanical and physical properties
• Multiple external profiles and internal space configurations available
• Accurate CNC cutting, drilling and milling for precise assembly fit
• Surface finishes: anodizing, powder coating, natural finish, laser marking
• Support for custom engraving, printing and brand marking
• Protective packaging designed for cross‑region transport

Core Advantages

• High thermal conductivity for effective heat dissipation
• Compact, sealed structures reduce dust, moisture and impact ingress (IP sealing options available)
• Good metal toughness for long service life and dimensional stability
• Intrinsic EMI/RFI shielding that reduces electromagnetic interference
• Portable designs that simplify installation and maintenance

Custom services

• Free structural design according to internal component layout (2D/3D CAD/STEP available)
• Custom hole locations, grooves and special outlines
• Various color and surface effects (anodize, powder coat, laser engraving)
• Flexible order quantities from single prototypes to mass production
• Tailored packing solutions meeting different shipping standards

Common applications

• Enclosures for consumer and commercial electronic products
• Casings for precision test instruments and sensors
• Protective shells for small power and control equipment
• Housings for portable industrial detection and handheld devices
• Protection for mini circuit modules and embedded components
• Enclosures for smart terminals and wearable devices

Material & performance benefits
Aluminum alloy enclosures offer a strong strength‑to‑weight ratio (lighter than steel while maintaining rigidity), inherent EMI shielding, efficient thermal dissipation, corrosion resistance in humid or marine environments, and recyclability to reduce environmental impact.

Technical implementation examples

• Precision machining for connectors, switches, displays and mounting points; options for rails, standoffs, brackets or flanges
• Sealing packages to achieve waterproof ratings (configurable up to IP67)
• Modular designs with removable/interchangeable panels for serviceability and integration

Open-source CAD & STEP models
CAD and STEP files are available for standard extruded profiles and end‑cap designs to ease integration and customization; standard profiles support unlimited length adjustments and independent end‑cap modifications or cutouts.

Frequently Asked Questions

• What is an aluminum alloy enclosure? A corrosion‑resistant protective housing made from industrial‑grade aluminum alloys to protect electronics and equipment in demanding environments.
• How does an industrial aluminum enclosure differ from standard cases? It uses stronger alloys, improved corrosion resistance and greater tolerance to vibration and temperature variations than basic consumer cases.
• Can I get custom cutouts? Yes. Precise CNC machining for connectors, switches, displays and mounting points can be supplied to your specifications.
• What finishes are available? Natural finish, anodizing, powder coating and laser engraving are common options.
• Which industries use these enclosures? Factory automation, renewable energy, transportation, medical devices, telecom/base stations, EV charging, environmental monitoring and outdoor installations.

Technical specifications

• Material: Industrial high‑purity aluminum alloy
• Manufacturing: CNC machining for accurate cutouts, drilling and milling
• Surface treatments: anodizing, powder coating, natural finish, laser engraving
• Thermal: High thermal conductivity for heat dissipation
• EMI/RFI: Inherent shielding; optional enhanced coatings for critical applications
• Sealing / ingress protection: Configurable up to IP67 depending on design
• Customization: Custom dimensions, mounting holes, cutouts, colors, logos and packaging
• Documentation: 2D/3D drawings available (STEP, CAD)
• Minimum order: Flexible — single‑piece custom orders supported
