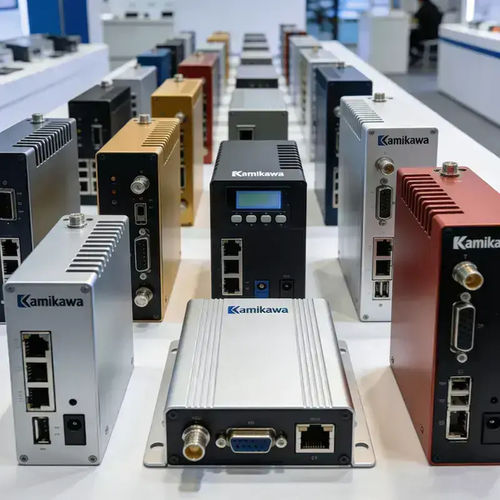

Distribution electrical enclosure

controlswitchingDIN rail

Product Introduction
Extruded aluminium enclosure profiles manufactured in 6063/6061 alloy, designed for electronic housings, PCBs and industrial modules. The one‑piece extrusion provides structural consistency, efficient thermal path and options for EMI/RFI shielding suitable for indoor and outdoor installations.

We offer over 400 different sizes of extruded aluminum enclosures. All specifications require no additional mold costs, MOQ 1PC, and our prices are at least 30% cheaper than our competitors.

You can directly download the Extruded Aluminum Enclosure drawings (without copyright restrictions) suitable for your products from our official website (Electronic-Enclosure) | 3D Model Library.

Our website features an online interactive 3D model viewing function, allowing you to view 3D models via mobile phone, computer, or mobile device. It supports quick online product specification searches, 3D drawing downloads, likes and comments, and online inquiries. Welcome to visit our official website.

Key Features

• One‑piece extrusion ensures uniform geometry and assembly fit
• Multiple standard profile sizes available to match assembly requirements
• Custom length cutting and dimension processing on request
• Precision CNC machining for cutouts, mounting holes and notches
• Surface treatments: sandblasting, anodizing, powder coating (custom colors)
• Support for logo engraving, printing and tailored outer packaging
• Strict dimensional control for reliable interchangeability

Core Advantages

• Integrated structure reduces joints and potential deformation
• Grooved profile design improves natural convection heat dissipation
• Enhanced shock and vibration resistance for industrial environments
• Corrosion resistance with appropriate surface treatments for extended service life
• Established extrusion process for cost‑effective volume production
• Compact, lightweight design simplifies mounting and maintenance

Custom Services

• Free 3D drawing aligned to chosen extrusion profile
• Custom internal fixing frames and separated structural layouts
• Personalized opening positions and shape machining
• Optional surface color and texture finishing
• Support for prototype orders and large‑scale production
• End‑to‑end service from raw profile to finished product delivery

Common Applications

• Industrial control cabinets and electrical matching equipment
• Mass‑produced PCB protection enclosures
• Signal transmission and communication devices
• Power conversion and power supply modules
• Factory automation electronic components
• Enclosures for commercial intelligent equipment

Performance & Durability
6063/6061 aluminium alloys provide effective thermal conductivity for PCB/component cooling and offer conductive properties for EMI/RFI mitigation when combined with suitable surface or conductive treatments. Profiles resist corrosion with proper finishing and withstand typical industrial operating conditions.

Manufacturing & Production Notes

• Unlimited custom length options; custom dimensions for length/width/height supported
• Over 300 existing standard profiles; free mold matching for standard sizes
• MOQ for mass production typically from 100 sets; standard profiles support prototype orders from 1 piece
• Precision CNC processing available for cutouts, mounting holes and logos

Frequently Asked Questions

• Q: Can I customize the size? A: Yes, personalized size customization is supported to meet installation requirements.
• Q: What surface treatments are offered? A: Sandblasting, anodizing and powder coating are available, with custom colors/textures.
• Q: Is this product suitable for heat dissipation? A: Yes, aluminium provides effective thermal conductivity for component cooling.
• Q: Do you support logo engraving? A: Yes, logo engraving, printing and custom machining for mounting are supported.

Technical specifications

• Material: Aluminium alloy (6063 / 6061)
• Manufacturing method: One‑piece extrusion molding
• Structural features: Grooved profiles for enhanced convection cooling; integrated single‑piece structure
• Thermal: Good heat conduction for PCB and component cooling
• EMI/RFI: Conductive properties; optional conductive treatments for shielding
• Mechanical: High strength with anti‑shock and anti‑vibration performance
• Corrosion resistance: Surface treatments available to improve corrosion & UV resistance
• Surface finishes: Sandblasting, anodizing, powder coating (custom colors/textures available)
• CNC capabilities: Precision machining for cutouts, mounting holes, notches and logos
• Customization: Custom lengths, custom dimensions, custom internal frames and packaging
• Production: Free 3D drawing for profile matching; over 300 standard profiles; MOQ mass production typically 100 sets; prototypes from 1 piece for standard profiles
• Documentation: Specification sheets available (PDF specification documents referenced on product page)
