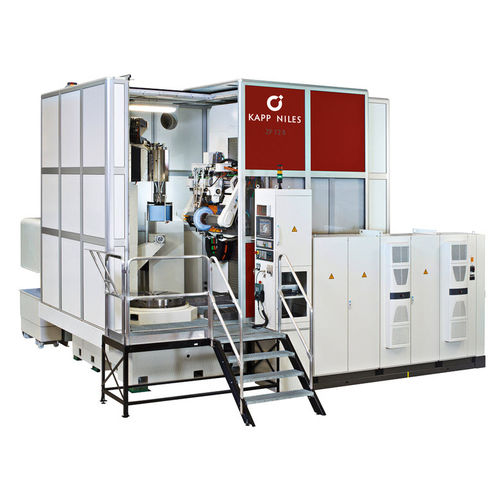

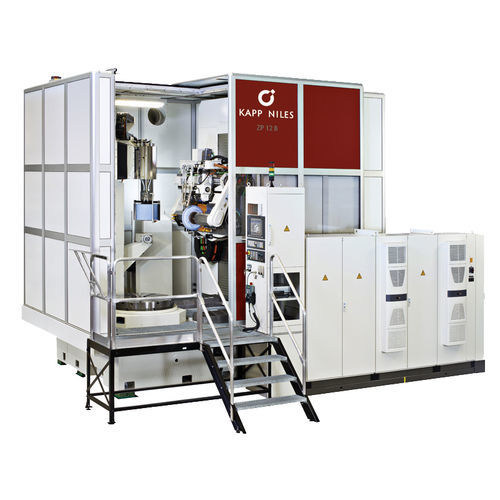

Gear grinding machine ZP B

internal cylindricalmetal profileCNC

Based on the well-known ZP series, application-specific solutions have been developed: The machines of the ZP B model have been designed for complete hard finishing (gearing and reference surfaces) of external planetary and bull gears with a tip diameter of up to 3,000 mm. The combination of machining processes ensures a high potential for optimising workpiece quality while at the same time reducing set-up and machining times. Key features of the ZP B model Grinding of external gears and reference surfaces Internal and external cylindrical grinding with an additional spindle Machining of bores and end surfaces in one set-up max. tip diameter - 1,000 - 3,000 mm max. workpiece length - 1,700 (2,050) mm max. module - 40 (50) mm max. face width - 1,000 - 2,000 mm swivel range of grinding head - -45 / +120 degrees
