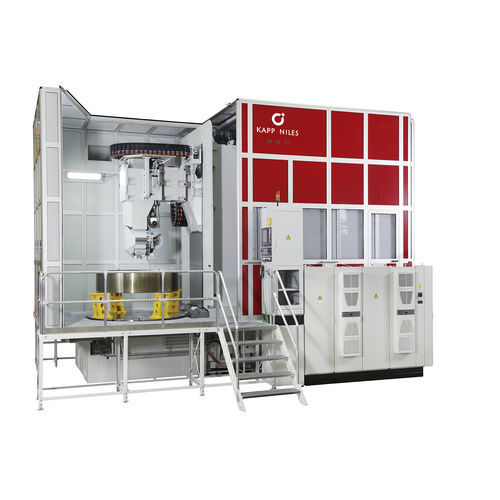

Gear grinding machine ZP I/E

CNChigh-precision

The machines of the ZP I/E model are used for high precision profile grinding of internal gears with large modules with a root diameter of up to 2,900 mm. The grinding arm is designed to allow it to rotate by 180°, thus the machine can be refitted for grinding external gears and special profiles within 60 minutes. The basic machines are equipped with a dresser, integrated measuring device, a balancing unit and comprehensive software. Key features of the ZP I/E model Machining of internal and external gears with large modules and gear widths Grinding head can be rotated 180 degrees Set-up in less than an hour max. tip diameter - 3,000 / 4,000 mm max. workpiece length - on request max. module - 50 mm max. face width - 1,000 (1,500 / 2,000) mm swivel range of grinding head - -45 / +120 degrees
