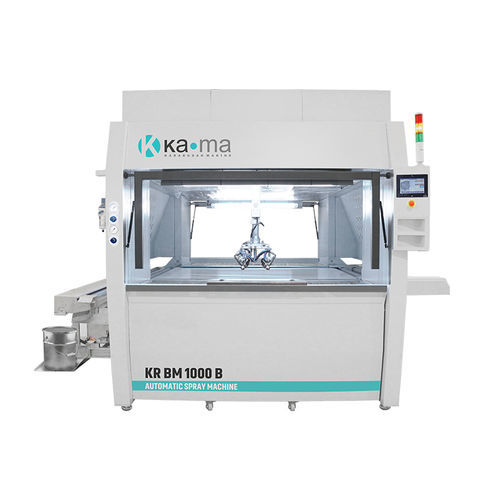

Paint spray unit KR BM 1000 B

automaticfor woodfor metal

KR BM 1000 B, which is designed for Automatic Painting of panel-shaped products, is an extremely easy to use machine with its superior technological features. It provides %30 saving with its paint recovery system and allows its users to ensure high quality and economic finishing. KR BM 1000 B is ideal painting solution for small and medium scale businesses. STANDARD FEATURES I SPRAYING MACHINE ASPIRATION AND VENTILATION SYSTEM Overspray is sucked through two-stage dry filters. Large filtering surface area ensures better air distribution, which translates into uniform finishing and a cleaner machine. Inverter controlled tubeaxial fans which pump clean air inside the cabin through the F5 filters are located on the top of the machine. This system provides optimum pressure inside the cabin. PRODUCT SCANNING SYSTEM(READING BARRIER) 32 pcs sensor beam is positioned under the motorized feeding rollers, ensures a millimetric precision on determining the section which will be painted. It minimises the wastage of paint. PAINT RECOVERY & BELT CLEANING SYSTEM Paint on the polyolefin conveyor belt is scraped automatically and can be used again with the paint recovery system. Cleaning system cleans the belt with a solvent or water (if the paint is waterbased) and rubber blade dries the belt totally. CONTROL SYSTEM In KR BM 1000B ,a 7″ color touch screen is provided as standard, allowing you to control and memorize all functions and operating parameters. All production data can be tracked online by optional IOT system and it can send daily production reports. SPRAYING SYSTEM The machine is equipped with 1 central painting arm.
