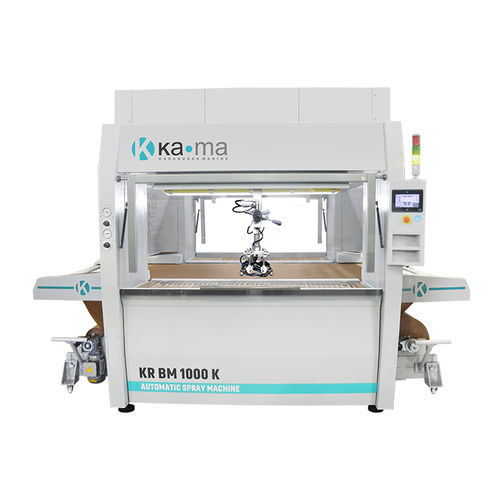

Fixed spray unit KR BM 1000 K

paintelectropneumaticautomatic

KR BM 1000 K is single arm spray machine, suitable for the application of any type of water or solvent-based paint or glue. It is ideal for small to medium sized companies that are looking for flexibility and productivity as well as cost-effective use. ASPIRATION SYSTEM Overspray is sucked through two-stage dry filters. Large filtering surface area ensures better air distribution, which translates into uniform finishing and a cleaner machine. PRODUCT SCANNING SYSTEM(READING BARRIER) 32 pcs sensor beam is positioned under the motorized feeding rollers, ensures a millimetric precision on determining the section which will be painted. It minimises the wastage of paint. FEEDING SYSTEM Feeding system consists of a paper unwinding device with adjustable brake for clean paper and an independent motor-driven winding device (torque controlled) to take up the paper after spraying. CONTROL SYSTEM In KR BM 1000 K, a 7″ color touch screen is provided as standard, allowing you to control and memorize all functions and operating parameters. All production data can be tracked online by optional IOT system and it can send daily production reports SPRAYING SYSTEM The machine is equipped with 1 central painting arm. Movement speed can be adjusted automaticlly by touch screen. Arm speed can reach max. 180m/m. Thanks to its portable design, it allows you to easily change the gun and adjust the angle and height. 1 high pressure pump and 4 high pressure guns are provided as standart. AUTOMATIC LUBRICATION SYSTEM This system ensures a smooth and long-lasting operation of the reciprocating arms by automatically lubricating the lineer bearings and guides. Dying machine with paper
