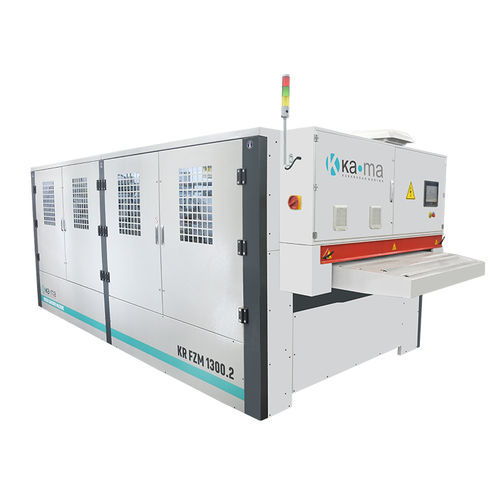

KR FZM 1300.2 which is developed to sand raw, primer or filling applied profiled, carved & flat surfaces achieves successful results even on the most difficult surfaces thanks to its flexible sanding feature.
STARDARD FEATURES
CONTROL SYSTEM
This panel allows for easy input of values for the positioning of all units, conveyor belt movement speed, which units will operate, how far the brush sanders will penetrate the product, and the movements of independent orbital sanding units. It can also enable the optional IoT system to track all production data online and send daily production reports.
OSCILLATORY DISC BRUSH SANDERS
This unit consists of a total of 18 pieces, 9+9, with a diameter of 250 mm oscillating disc brush sanders. It ensures the sanding of textures and primer on the product with a 1mm precision working position.
OSCILLATORY CYLINDER BRUSH SANDERS
This unit consists of a total of 6 pieces, 2+2+2, with a diameter of 320 mm oscillating cylinder brush sanders. It ensures the sanding of textures and primer on the product with a 1mm precision working position.
MOVABLE CONVEYOR TABLE
The conveyor is mobile and can be adjusted with a 1mm precision according to the product’s thickness. It can be automatically adjusted based on the desired piece thickness from the touchscreen. The maximum working speed is 8m/min.
VACUUM TABLE
The vacuum system prevents products from being damaged and ensures their movement on the conveyor belt.
MOVABLE AIR JET UNIT FOR DUST REMOVAL
This equipment cleans the sanding dust from the product before it exits the machine.
