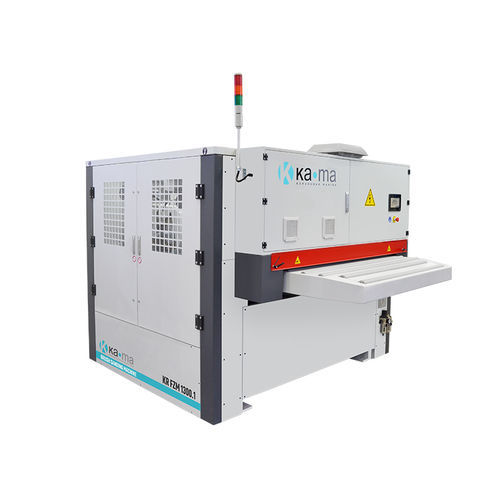

Brush sander KR FZM 1300-1

beltdiscorbital

KR FZM 1300.1 which is developed to sand raw, primer or filling applied profiled, carved & flat surfaces achieves successful results even on the mostdifficult surfaces thanks to its flexible sanding feature. STARDARD FEATURES I SANDING MACHINE CONTROL SYSTEM Allows easy input of all parameters for unit positioning, conveyor belt speed, which units will operate, how far brush sanders will penetrate the product, and independent orbital sander unit movements through this panel. With the optional IoT system, all production data can be tracked online, and daily production reports can be sent. OSCILLATORY DISC BRUSH SANDERS This system consists of 9 pcs disc brush sanders. Rotating speed, direction and height of the sanders can be adjusted automatically. It does not scratch the product thanks to its oscillation feature. Practical sandpaper changing system provides convenience to the operator. OSCILLATORY CYLINDER BRUSH SANDERS This system consists of 2 pcs cylinder brush sanders. Rotating speed, direction and height of the sanders can be adjusted automatically. It does not scratch the product thanks to its oscillation feature. Practical sandpaper changing system provides convenience to the operator. MOVABLE CONVEYOR TABLE The conveyor is mobile and its position can be adjusted according to the thickness of the workpiece with a 0,1 mm precision. The height of the application can be controlled and adjusted from touch panel according to the panel thickness. The max. conveyor speed is 8 m/min. AIR JET UNIT FOR DUST CLEANING Before the sanding dust leaves the product, this equipment cleans it, keeping the brush clean by removing the dust from the machine.
