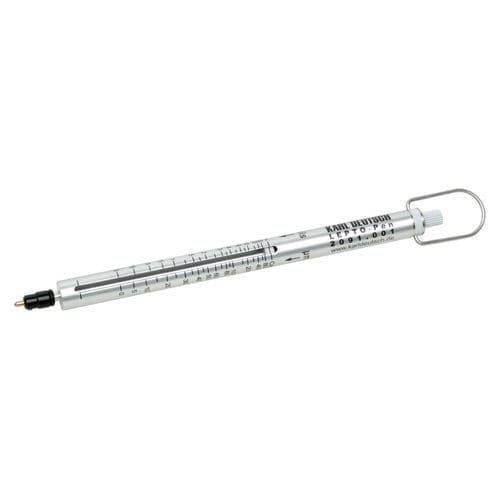

Coating thickness gauge LEPTO-PEN

portablehandheld

If the high precision of electronic coating thickness gauges is not required, there is a simple and inexpensive alternative. For these applications the coating thickness gauge LEPTO-Pen is the right choice. The LEPTO-Pen works on commercially available unhardened steel according to the well-known adhesive force principle (EN ISO 2178). It consists of a precision magnet and a mechanical spring balance whose scale is calibrated and labeled in µm coating thickness. Key Facts • Measuring range: 10 to 500 µm / 0.25 to 20 mils • Scale 0 to 800 µm / 0 to 30 mils • Measuring uncertainty in the measuring range: +/- 10% +/- 3 µm • Service life: min. 500.000 measuring cycles
