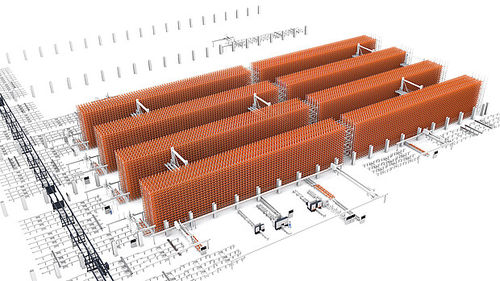

Vertical automatic storage system UNICOMPACT
with stacker cranefor barscompact

vertical automatic storage system
vertical automatic storage system
vertical automatic storage system
vertical automatic storage system
vertical automatic storage system
vertical automatic storage system
vertical automatic storage system
Add to favorites
Compare this product


Characteristics

Type
vertical
Other characteristics
with stacker crane, for bars, compact
Maximum load

Min.: 1 t (1.1 us ton)

Max.: 8 t (8.8 us ton)

Description

The close dimensions of the operating gantry crane ensure that as much space as possible is used for material storage. Utilizing the principle „Material to Operator“, the UNICOMPACT bar storage system delivers the requested material fast to the outfeed stations. An extensive variety of different station designs increases the efficiency for cutting and commissioning of solids or shapes of steel, aluminum, plastic or non-ferrous materials. •Building heights 4-26 m (13‘-85.3‘) •Cassette for 1-8 t (2,200-17,600 lbs.) usable load •Inventory volume approx. 500-8.000 cassettes – approx.500-40.000 t (1,100,000-88,000,000 lbs) •Cassette lengths from 3 to 14 m (9.8‘-45.9‘) •Building carrying design possible Technical data: Loading per storage location 1-8 t (2,200-17,600 lbs) Economic storage size from 500 locations Economic storage length 3-14 m (9.8´-45.9´) Economic system height 4-26 m (13.1´-85.3´) Rack supported design possible yes Number of pick per h (per OGC) 20-60 Partially integrated saw possible yes Fully integrated saw possible yes
