Stacking cradle system UNIBLOC

stacking cradle system
stacking cradle system
stacking cradle system
stacking cradle system
stacking cradle system
stacking cradle system
stacking cradle system
stacking cradle system
stacking cradle system
Add to favorites
Compare this product


Description

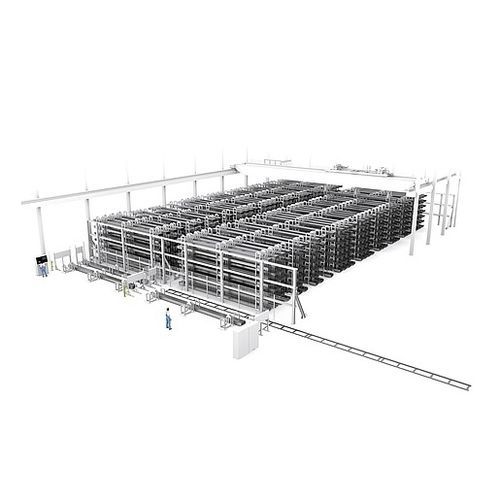

For the conventional restacking operation with UNIBLOC, only two-hoist, possibly swayfree cranes are needed. The best suited material lengths for the Stacking Cradle System UNIBLOC are between 3 and 24 m (9.8‘ and 78.7‘). Up to three layers of stacking cradles with a usable height of 400 mm (15.7“) each can be transported together via the mechanical gripper function. Only the crane‘s up/down movement is required to lock/unlock the spreader beam with the cradles. •Efficient work processes due to multiple lifts •Enormous time savings due to transport of up to three layers simultaneously •Accurate transport sequences due to automatic restacking •Small fl oor space requirements due to vertical space utilization •More profi tability due to faster and easier access Technical data: Loading per storage location 6/9 t (13,200 / 19,800 lbs) Economic storage size from 10 locations Economic storage length 3-24 m (approx. 10 – 80 feet) Economic system height up to 5 m (up to 16.5 feet) Rack supported design possible no Number of pick per h (per OGC) 1-20 Partially integrated saw possible yes Fully integrated saw possible no

VIDEO
