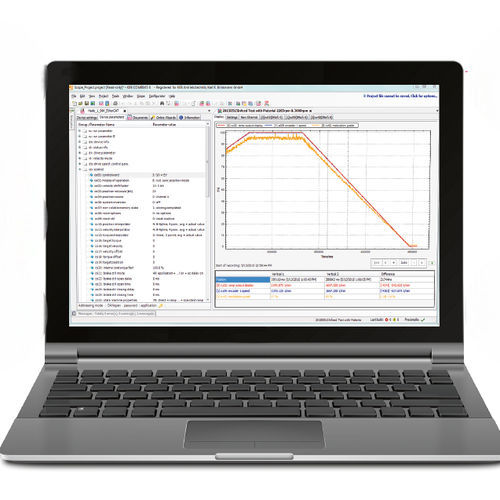

Visualization software suite COMBIVIS 6

monitoringdata acquisition and analysisconfiguration

Overview
COMBIVIS 6 is a free PC software suite by KEB for configuration, start-up, diagnostics and management of KEB drive controllers. It provides device parameter management, live monitoring, firmware handling, an integrated oscilloscope and optional extension packages to adapt functionality to application requirements.

Highlights

• Full device parameter configuration and parameter list management
• Live display of physical measurements and operating data monitoring
• Wizards for guided start-up and troubleshooting with intuitive graphical UIs
• Real-time fieldbus configuration and analysis
• Integrated document database with manuals and technical data
• Multi-channel scope for recording and visualising measured signals
• Drive Software Center for firmware updates of COMBIVERT controllers

Core functions

• Start-up, configuration and administration of KEB devices
• Guided wizards for commissioning and diagnostics
• Parameter lists: create, save, restore and deploy sets of parameters
• Energy efficiency calculation compliant with EN 61800-9-2
• Direct access to documentation for components in KEB’s portfolio

Expansion packages (examples)

• Device Naming: bulk (re-)naming of devices in a project with standard and custom naming schemes
• Servo Pump Wizard: assistant-led commissioning for servo pump + drive + motor with autotuning and resonance/notch handling
• Startup Wizard T6 APD: menu-guided commissioning for modular T6 APD controllers and interface definition
• Dashboard: clear visualization of S6/F6 controller status, operating parameters, error history and snapshots for service
• Scope 2.0: advanced recording, intelligent triggers, curve overlays and enhanced device integration

COMBIVIS CLI
COMBIVIS CLI is a command-line tool for automated interaction with KEB devices via UDP or serial links. Typical uses include reading/writing parameters, executing parameter lists and KebFTP file operations for production and service automation.

• Common commands: logFile, write/read, downloadDW5
• KebFTP functions: transferFormTarget, listFiles, deleteFile
• Supported platforms (requires .NET Framework 4.7.2): Windows 7, 8.1, 10

COMBIVIS mobile (App)
The COMBIVIS mobile app enables wireless operation of KEB drive controllers from a smartphone or tablet (WLAN or Bluetooth with adapter). It supports monitoring, fault analysis, parameter view/write, favourite lists and backup/restore including offline scope features.

• Supports COMBIVERT S6/F6 controllers
• Connection via WLAN and Bluetooth (adapter may be required)
• Dashboard, error list, I/O status and operation history
• Parameter read/write, favourite parameter lists and backup/restore
• Offline scope capability

Downloads & Documentation
COMBIVIS 6 package includes user manuals, release notes, FAQs and software installers provided by the vendor. Detailed documentation and download packages are available on the product page.

Technical specifications

• Product / model: COMBIVIS 6
• Manufacturer: KEB Automation KG
• License / availability: PC software, provided free of charge by KEB
• Primary supported controllers: COMBIVERT S6, F6
• Scope: multi-channel digital oscilloscope for signal recording and display
• Fieldbus: configuration and analysis of real-time fieldbus communication
• Energy: efficiency calculation per EN 61800-9-2
• Expansion packages: Device Naming, Servo Pump Wizard, Startup Wizard T6 APD, Dashboard, Scope 2.0, etc.
• COMBIVIS CLI: UDP/serial connectivity; Windows 7/8.1/10, .NET Framework 4.7.2
• Typical documented software version: 6.9.0
