Layer by layer palletizer PLATEPAL

for the food and beverage industrypositioningbag

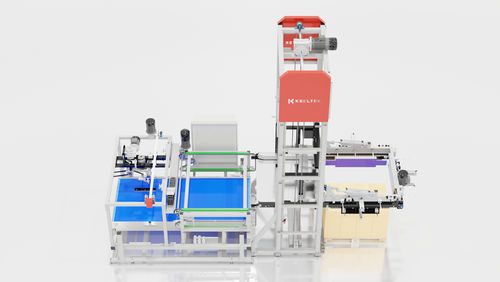

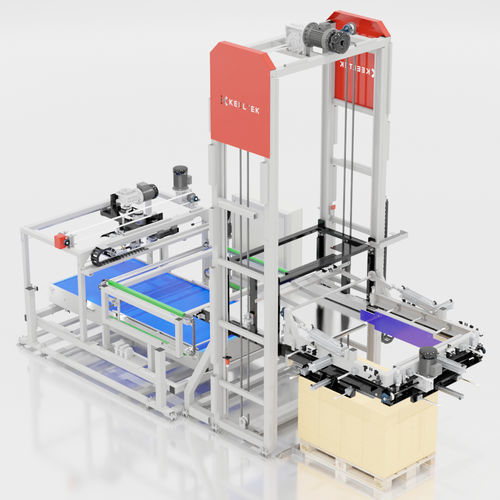

High-performance Cartesian palletizer with 2 axes and horizontal transfer plate, featuring an automatic positioning and alignment system for boxes, focused on layer palletizing of boxes with products that can withstand little lateral pressure or that need to be placed layer by layer gently.

PLATEPAL is ideal for production lines that require precise and careful palletizing. With a 2-axis design and horizontal plate, this equipment is equipped with a box positioning and rotation system, allowing for the formation of uniform layers without applying excessive pressure on delicate products. Its robustness and precision make it perfect for industries that work with boxes that can't withstand big lateral pressure or that need to be positioned gently on top of the previous layer, ensuring efficiency and safety in handling.

It is perfect for the following sectors:

• Chemical
• Ceramic
• Fresh food
• Bottling and beverages
• Manufacturing industry
• Pharma

ADVANTAGES
Efficiency:
Low consumption, IEE (Intelligent Energy Efficiency).
The motorized elements remain on stand-by until they need to move product and remain totally stopped if they do not receive product after a certain period of time.
Features:
Simple and intuitive creation of mosaics by the operator using proprietary software.
Reversed layer function for improved stability.
Safety and ergonomics:
Study and treatment of safety and ergonomics from the start of the design process, machine subjected to risk analysis and auditable risk assessment.
Touchscreen interface with various levels of accessibility, allowing you to adjust all parameters that influence the machine's performance. (Recipes, Timers, Speeds, Counters, etc.)
Durability
Machine manufactured with laser-cut steel, water jet cutting, bending, electro-welding, and precision parts made in machining centers.
Structures and thicknesses optimized using specialized software calculations.
Combined different materials on the surface in two-component polyurethane, epoxy paint, galvanized and/or stainless steel.
OPTIONS
Rotator with selectable label positioning, high performance.
Labeling machine integration.
Automatic pallet dispenser and changer.
Add pallet between layers function. (Manual or automatic)
KTS, remote assistance.
Full stainless steel finishes
