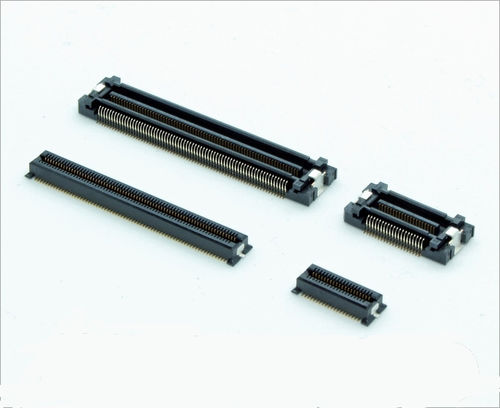

Data connector DUS series

transmissionindustrial

KEL Corporation (Headquarters: Tama City, Tokyo, President: Etsuro Doi) has developed the 0.4mm pitch floating connector "DUS series" that low profile height with a stack height of 3mm. The main feature is the stack height of 3mm, which is even lower than the stack height of 5mm of "DU series" (0.4mm pitch), which has the narrowest pitch in our floating connectors. The amount of floating is the same as DU series, that is ± 0.4mm in the XY direction. Meanwhile, as it is capable of 16Gbps (-3dB, 8GHz) high speed serial transmission at the operating temperature + 125 ℃, it can be used for an automotive application which requires such high temperature environment. The number of contacts are available from 30 to 140, and we are currently able to provide prototype samples of 40 pins and 140 pins. Please send us sample request from the link below or contact our sales representatives. ・　Low profile design with 3mm stack height ・　Capable of 16Gpbs (-3dB, 8GHz) high speed serial transmission ・ Operating temperature up to + 125 ° C ・ The number of contacts are available from 30 to 140pins. * Prototype samples are currently available for 40 and 140pins. ・ Floating amount to be± 0.4 mm in XY direction ・ Insulator molding on the bottom of receptacle enables wiring pattern at the bottom of connector. ・ In-car equipment (navigation system, In-vehicle camera, ADAS peripherals) ・ Image equipment (single-lens reflex cameras, broadcast cameras) ・ Industrial equipment (semiconductor inspection equipment) ・ 5G / IoT peripherals ・ Insulator materials: LCP (with glass-filled) UL94V-0 material, color: black ・ Contact material: copper alloy ・ Contact plating: Gold over Nickel
