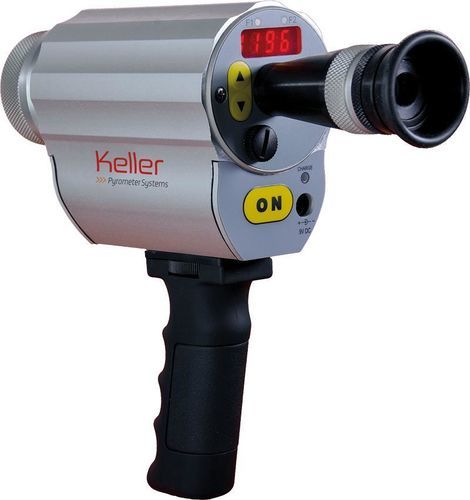

Two-color pyrometer CellaCast PT 183

with LED display°C°F

Description
The mobile CellaCast PT 180 was specially developed for measuring the temperature of liquid metals. It is used to continuously monitor the temperature of the melt in the casting channel of a blast furnace, cupola furnace or automatic casting machine. Measurement is often only possible from large distances due to plant constraints. The special feature of the CellaCast PT 180 is its high-resolution lens and thus a small measuring field, enabling reliable measurement even from distances up to around 30 m.

Special features

• Non-contact and wear-free temperature measurement of the pouring stream from a safe distance
• Measuring range 750 - 2400 °C
• Filtering of the correct infrared radiation of the slag-free and oxide-free melt
• ATD function for fully automatic measured value acquisition
• Two-colour measurement for interference-free measurement in dust and vapour
• Parallax-free through-the-lens sighting with dioptric compensation
• Traffic light display in the through-the-lens sighting to indicate the optimum measuring distance

Available versions / basic properties

• Versions: CellaCast PT 180 AF 4; CellaCast PT 180 AF 6
• Measuring principle: two-colour
• Measuring range: 750 - 2400 °C
• Focus distance (AF 4): 0.4 m - ∞
• Focus distance (AF 6): 1.2 m - ∞
• Distance ratio (AF 4): 150 : 1
• Distance ratio (AF 6): 240 : 1
• Objective (AF 4): PZ 20.01
• Objective (AF 6): PZ 20.06
• Shape of the measuring field: round
• Sighting option: Through-the-lens-sighting

Measuring field table (Measuring distance — Measuring field diameter)
0.00 mm — 18.00 mm
16.00 mm — 17.39 mm
32.00 mm — 16.77 mm
48.00 mm — 16.16 mm
64.00 mm — 15.55 mm
80.00 mm — 14.93 mm
96.00 mm — 14.32 mm
112.00 mm — 13.71 mm
128.00 mm — 13.09 mm
144.00 mm — 12.48 mm
160.00 mm — 11.87 mm
176.00 mm — 11.25 mm
192.00 mm — 10.64 mm
208.00 mm — 10.03 mm
224.00 mm — 9.41 mm
240.00 mm — 8.80 mm
256.00 mm — 8.19 mm
272.00 mm — 7.57 mm
288.00 mm — 6.96 mm
304.00 mm — 6.35 mm
320.00 mm — 5.73 mm
336.00 mm — 5.12 mm
352.00 mm — 4.51 mm
368.00 mm — 3.89 mm
384.00 mm — 3.28 mm
400.00 mm — 2.67 mm

Scope of delivery

• Pyrometer CellaPort PT
• Protective and carrying case
• Charger
• USB cable VK 11/D (1.8 m)
• Software CellaView
• Manual (short)

Technical specifications

• Item No.: 1056171
• Measuring range: 750 - 2400 °C
• Sensor: Double photo diode
• Spectral range: 0.95 / 1.05 µm
• Response time t98: ≤ 10 ms (T > 950 °C)
• Measurement uncertainty: 1 % of temperature reading [°C]
• Repeatability: 2 K
• Temperature coefficient: 0.05 %/K
• Resolution (interface): 0.1 K
• Resolution (display): 1 K
• Lenses (optical variants): Standard lens PZ 20.01 (focusing 0.4 m - ∞); Telephoto lens PZ 20.06 (focusing 1.2 m - ∞)
• Interface: USB
• Power supply: Rechargeable battery pack; Battery life approx. 15 hours (continuous operation at Ta = 23 °C)
• Sighting option: Through-the-lens-sighting (parallax-free, dioptric compensation)
• Display: 4-digit red LED display, digit height 8 mm
• Status display: 2 × external LED, 3 × internal LED
• Control elements: 3 buttons
• Ambient temperature (operating): 0 - 50 °C
• Storage temperature: -20 - +60 °C
• Permissible humidity: 95 % r.H. max. (non-condensing)
• Dimensions: Ø 65 mm × 197 mm (plus lens length)
• Housing: Aluminium
• Protection class: IP 40 (acc. to DIN 40050)
• Weight: approx. 1.1 kg
• Adjustable parameters: Emissivity; Emissivity tables locations; Transmittance; Compensation of reflected ambient radiation; Smoothing filter; Operation mode and hold time of data memory; Parameters of the ATD function; Linearization function; LED status display; Temperature unit °C/°F; Automatic shutdown; Measurement channel two-colour / single-colour; Threshold level of the signal monitoring
• Functions: ATD (Automatic Temperature Detection) for automatic temperature detection at discontinuous processes
• Software: CellaView
