Two-color pyrometer CellaCast PT 180

LED°C°F

Product overview

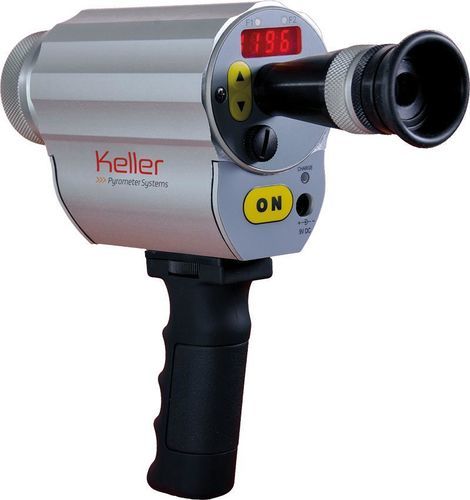

The mobile pyrometer CellaCast PT 180 is designed for non-contact temperature measurement of liquid metals and for continuous monitoring of the melt in casting channels of blast furnaces, cupola furnaces and automatic casting machines. Its high-resolution optical system produces a small measuring field that enables reliable measurements at distances up to 30 m.

Key features

• Non-contact, wear-free temperature measurement of the pouring stream from a safe distance
• Measuring range 750 - 2400 °C
• Filtering of correct infrared radiation from slag-free, oxide-free melt (CSD function)
• ATD function for automatic capture of measured values in discontinuous processes
• Two-colour measurement for interference-free operation in dust and vapour
• Parallax-free through-the-lens sighting with dioptric compensation
• Traffic-light indicator in the sight for optimum measuring distance

Versions / Properties

• Versions: CellaCast PT 180 AF 4; CellaCast PT 180 AF 6
• Measuring range: 750 - 2400 °C
• Focus distance (AF 4): 0.4 m - ∞
• Focus distance (AF 6): 1.2 m - ∞
• Sighting option: Through-the-lens sighting
• Measuring principle: Two-colour
• Shape of measuring field: Round
• Distance ratio AF 4: 150 : 1
• Distance ratio AF 6: 240 : 1
• Objective AF 4: PZ 20.01
• Objective AF 6: PZ 20.06

Measuring field table

• 0.00 mm | 18.00 mm
• 16.00 mm | 17.39 mm
• 32.00 mm | 16.77 mm
• 48.00 mm | 16.16 mm
• 64.00 mm | 15.55 mm
• 80.00 mm | 14.93 mm
• 96.00 mm | 14.32 mm
• 112.00 mm | 13.71 mm
• 128.00 mm | 13.09 mm
• 144.00 mm | 12.48 mm
• 160.00 mm | 11.87 mm
• 176.00 mm | 11.25 mm
• 192.00 mm | 10.64 mm
• 208.00 mm | 10.03 mm
• 224.00 mm | 9.41 mm
• 240.00 mm | 8.80 mm
• 256.00 mm | 8.19 mm
• 272.00 mm | 7.57 mm
• 288.00 mm | 6.96 mm
• 304.00 mm | 6.35 mm
• 320.00 mm | 5.73 mm
• 336.00 mm | 5.12 mm
• 352.00 mm | 4.51 mm
• 368.00 mm | 3.89 mm
• 384.00 mm | 3.28 mm
• 400.00 mm | 2.67 mm

Technical specifications

• Measuring range: 750 - 2400 °C
• Sensor: Double photodiode
• Spectral range: 0.95 / 1.05 µm
• Response time t98: ≤ 10 ms (T > 950 °C)
• Measurement uncertainty: 1 % of temperature reading [°C]
• Repeatability: 2 K
• Temperature coefficient: 0.05 %/K
• Resolution interface: 0.1 K
• Resolution display: 1 K
• Optical variants / Lenses: Standard lens PZ 20.01 (0.4 m - ∞); Telephoto lens PZ 20.06 (1.2 m - ∞)
• Interface: USB
• Power supply: Rechargeable battery pack; Battery life approx. 15 h (continuous at Ta = 23 °C)
• Display: 4-digit red LED, digit height 8 mm
• Status indicators: 2 × LED external, 3 × LED internal
• Control elements: 3 buttons
• Operating temperature: 0 - 50 °C
• Storage temperature: -20 - +60 °C
• Permissible humidity: 95 % r.H. max. (non-condensing)
• Dimensions: Ø 65 mm × 197 mm (plus lens length)
• Housing: Aluminium
• Protection class: IP 40 (DIN 40050)
• Weight: approx. 1.1 kg
• Adjustable parameters: Emissivity; Emissivity tables; Transmittance; Reflected ambient radiation compensation; Smoothing filter; Operation mode and data memory hold time; ATD parameters; Linearization; LED status display; Temperature unit °C/°F; Automatic shutdown; Measurement channel two-colour / single-colour; Signal monitoring threshold
• Functions: ATD (Automatic Temperature Detection) for automatic detection in discontinuous processes
• Scope of delivery: Pyrometer CellaPort PT; protective and carrying case; Charger; USB cable VK 11/D (1.8 m); CellaView software; Short manual
