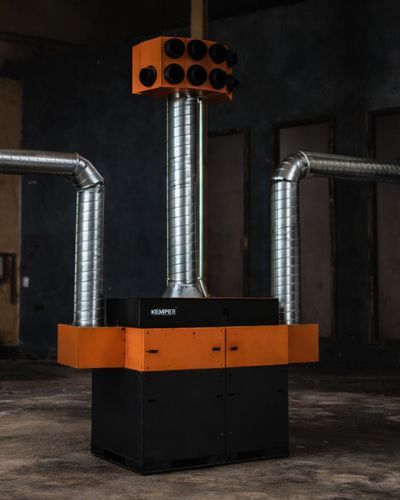

Floor-standing centralized fume extraction system KemJet

industrialwith self-cleaning filterdust

Description
KemJet is a stand-alone central ventilation system for workshops that cleans and recirculates indoor air using high-performance nozzles. It is designed for halls where local exhaust at source is not feasible or to supplement point-extraction systems. The system reduces airborne fine dust exposure and keeps heated air in the workspace to lower energy costs.

Application areas

• Workshops where local exhaust extraction is not possible
• To complement local point-extraction systems
• Environments with changing dust or smoke sources
• Large workpieces or widely separated workstations

Key features

• Adaptable cleaned-air distribution with high-performance nozzles adjustable by 30°
• Contamination-free dust collection via compressed-air fixation of dust containers
• Continuous operation with automatic differential-pressure-controlled filter cleaning
• Variable outlet heights by using different pipe lengths
• Low noise emission
• Reduced heating costs through air recirculation
• Quick and simple installation
• Operation via intelligent touch-screen control with diagnostic system

Available configurations

• Extraction capacity selectable: 6000 m³/h (standard), 9000 m³/h, 13000 m³/h

Technical specifications

• Filter stages: 0
• Total filter area: 60 m²
• Weight: 270 kg
• Dimensions (depth x width x height): 730 mm x 1670 mm x 760 mm
• Motor power: 4 kW
• Rated current: 7.8 A
• Sound pressure level: 65 dB(A)
• Max. fan capacity: 6000 m³/h (configurable)
• Extraction capacity: 6000 m³/h
• Throw distance of air nozzles approx.: 30 m
