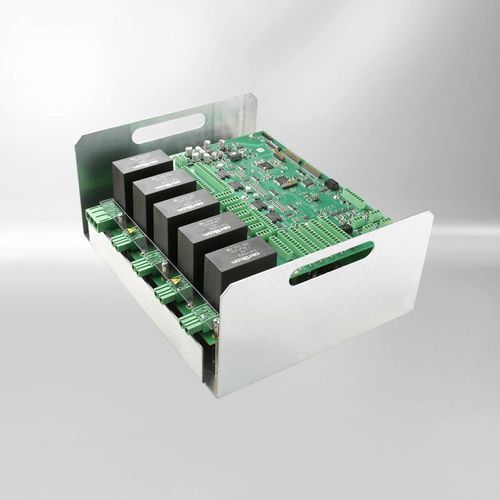

Industrial machine induction heating generator

for workpiecesfor metal sheetsfor heat treatment

Short description

Customized Induction Heating from Kendrion provides tailored inductive heating systems and compact heating modules designed for precise, dynamic and homogeneous heat generation in industrial processes. These systems combine power electronics, control & communication and temperature measurement into configurable solutions adapted to specific application requirements.

Main functions

• Power section: State-of-the-art semiconductor switches deliver high efficiencies at operating frequencies up to 50 kHz. Power classes reach up to 50 kW total, with up to 10 kW per channel and up to 8 independent channels. Output stages are short-circuit-proof and designed for continuous operation.
• Control and Communication: Microcontroller-based control implements temperature control, system monitoring, adaptation of inductors to output stages and communication via fieldbuses (e.g. EtherCAT) with a master control.
• Temperature measurement: Temperature of heated workpieces is detected using industrial sensors such as PT1000/PT100 or thermocouples; measurement can be integrated on power electronics or as a separate unit.

Benefits at a glance

• Customised hardware design
• Individual software solutions
• Cost-optimised solution
• Additional digital and analog I/Os
• Optimal temperature control & uniform heating
• Fieldbus compatibility: PROFINET®, CANopen, EtherCAT®
• Extensive diagnostics, e.g. temperature measurement

Configuration & design options

• Heating function: Number of channels: 1–n; Channel power: 1–10 kW per channel; Supply voltage: 3-phase AC / DC; Cooling: passive / forced air / water.
• Housing & mounting: Housing materials: metal, plastic, coatings; Mounting: control cabinet, busbar, special solutions; Protection class: IP00 – IP54; Electrical connection: plug, screw terminal.
• Additional functions: I/O types: digital, analogue, relay, galvanic isolation; Temperature sensors: PT100/PT1000, thermocouples; Fieldbus options: EtherCAT, PROFINET, CANopen.
• More options: Approvals (e.g. CE, UL), coordinated unit monitoring and error management, integrated software temperature controllers.

Fields of application

• Food & Beverage: heating plastic preforms in blow moulding machines (replacement/optimization of infrared systems).
• Textile machinery: inductive heating of rolls for plastic yarn stretching.
• Printing & Paper handling: heating rolls and plates for printing, embossing or paper handling as an alternative to oil or infrared systems.

Technical characteristics / specifications (excerpt)

• Operating frequency: up to 50 kHz.
• Power class: up to 50 kW total; up to 10 kW per channel; up to 8 independent channels.
• Output stages: short-circuit-proof, suitable for continuous operation.
• Temperature sensors supported: PT1000, PT100, thermocouples.
• Fieldbus communication: EtherCAT, PROFINET, CANopen.
• Cooling options: passive, forced air, water cooling.
• Protection class options: IP00 to IP54.
• Housing/mounting: metal/plastic housings; control cabinet, busbar or custom solutions.
• I/O: digital, analogue, relay outputs, galvanic isolation.
• Approvals: CE, UL (depending on configuration).
• Integrated functionality: microcontroller-based temperature control, system monitoring and diagnostic features.
