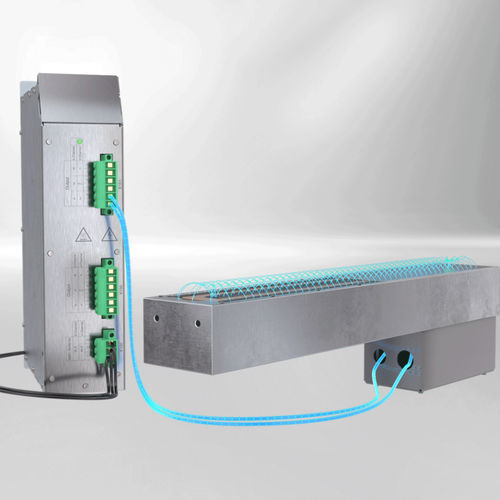

Workpiece induction heating generator Modular Induction Generators

for heat treatment400 Vmedium-frequency

Overview
The Kendrion modular induction generators are a scalable induction heating system consisting of a controller and up to seven generator modules. Modules supply multiple inductors with individually adapted power and are intended for integration into machine control via fieldbus (e.g. PROFINET, EtherCAT, CANopen). Extensive diagnostics and optional integrated I/O support fast commissioning.

Configurations

• 4-channel induction generator: supplies up to 4 induction coils with up to 7.5 kW each.
• 6-channel induction generator: supplies up to 6 induction coils with up to 3 kW each.

Benefits at a glance

• Fast heat-up time
• Precise temperature control and uniform heating
• Fieldbus compatible: PROFINET, CANopen, EtherCAT
• Extensive diagnostics for process monitoring
• Reduced operator exposure to hot media (e.g. oil)
• Emission-free heating
• No external cooling unit required in many applications

Technical specifications

• Fieldbus compatibility: PROFINET, EtherCAT, CANopen
• Controller: integrated controller for up to 42 channels
• System performance: scalable up to 150 kW
• Mains voltage: 3x 400 VAC
• Format: booksize units for switch cabinet mounting
• Diagnostic functions: short-circuit detection, temperature monitoring, voltage monitoring, power monitoring
• Operating frequency: 2...25 kHz
• Manufacturer: Kendrion

Notes on inductors and solutions
Inductors are manufactured to match tools and applications: roller inductors (integrated in rollers, rolls and cylinders) or surface inductors (area heating tools). Kendrion supplies customer-specific induction heating systems tailored to the heating requirements and integrating additional required functions.
