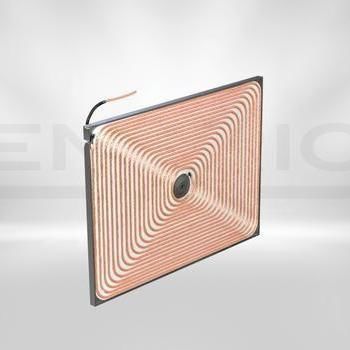

Inductive inductor

industrialfor heat treatmentcustom-made

Application and Use Cases
Kendrion surface inductors are inductive heating elements for uniform heating of tool surfaces. Surface inductors are used in food heating, packaging machinery, and embossing processes in the graphics industry. Surface heating is contactless and reproducible.

Process Effect
The homogeneous surface energy input of surface inductors reduces the required wall thickness of heated tools. The reduced thermal mass increases process dynamics. The increased process dynamics lowers energy consumption.

Design and Operation
Kendrion designs surface inductors using numerical field calculation methods. The design process adapts surface inductors to the geometric and thermal requirements of the application. Surface inductors are designed for continuous process temperatures up to 250 °C and operate without water cooling. The absence of water cooling reduces infrastructure effort and increases operational reliability.

Products (selection)
FLACH 158 HS10016
Dimensions (W x H x D): 158 mm x 158 mm x 72 mm
Heated Section: approx. 190 cm²
Rated power: 3,4 kW
Temperature range: 0 ... 240°C
Area output: up to 163 kW/m²
Inductor current: 14 A
Inductor voltage: < 1000 Veff
Efficiency: approx. 98 %
Duty cycle: 100 % duty cycle
Electrical connection: Screw connection M5 (max. tightening torque 3.5 Nm)
Electrical control: For connection to Kendrion induction generators
Product status: Standard product / in preparation
Certifications: Low Voltage Directive

FLACH HS 10009/1
Dimensions (W x H x D): 720 mm x 152 mm x 156,5 mm
Heated Section: approx. 432 cm²
Rated power: 20,0 kW
Temperature range: 0 ... 200°C
Area output: up to 182 kW/m²
Inductor current: 82,3 A
Inductor voltage: 900 Veff
Efficiency: approx. 98 %
Duty cycle: 100 % duty cycle
Electrical connection: Screw connection M6 (max. tightening torque 3.5 Nm)
Electrical control: For connection to Kendrion induction generators
Product status: Special edition
Certifications: Low Voltage Directive, IEC 61010-1

FLACH HS10003/2
Dimensions (W x H x D): 600 mm x 100 mm x 156,5 mm
Heated Section: approx. 432 cm²
Rated power: 6,5 kW
Temperature range: 0 ... 200°C
Area output: up to 150 kW/m²
Inductor current: 26,8 A
Inductor voltage: < 1000 Veff
Efficiency: approx. 98 %
Duty cycle: 100 % duty cycle
Electrical connection: Screw connection M5 (max. tightening torque 3.5 Nm)
Electrical control: For connection to Kendrion induction generators
Product status: Special edition
Certifications: Low Voltage Directive

Technical specifications

• Contactless inductive surface heating for uniform tool-surface heating
• Applications: food heating, packaging machinery, embossing (graphics industry)
• Designed with numerical field calculation methods to match geometric and thermal requirements
• Continuous process temperatures up to 250 °C (design capability)
• Operation without water cooling (increases operational reliability and reduces infrastructure)
• Homogeneous surface energy input reduces required tool wall thickness and thermal mass
• Improved process dynamics leading to lower energy consumption
• High efficiency: approx. 98 %
• 100 % duty cycle capability
• Connection: screw connections (M5 or M6 depending on model) for connection to Kendrion induction generators
