Water drain KRCR180/4”RD

manualmechanical

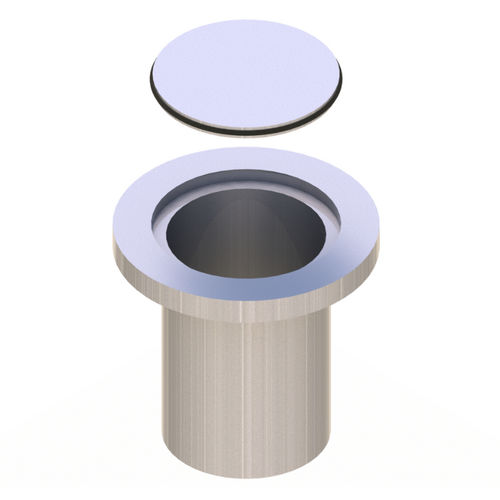

SEALED RODDING EYE PRODUCT CODE: KRCR180/4”RD The KRCR180/4”RD is a Sealed Rodding Eye or Cleanout. It has a Round Body, Round Top Bottom Outlet and can be used for Heavy Duty Areas. This is a sealed cleanroom rodding eye with a strong positive seal created by machining away a 10mm groove from a 20mm top plate. A 10mm top plate with a recessed ‘o-ring’ creates the seal. They are designed for use primarily in Food/Dairy/Beverage factories. They can be used in both light duty and very heavy duty trafficked areas (sealed gullies are most often used in laboratories or cleanrooms which are limited to pedestrian traffic – however the 10mm top plate makes it possible to drive heavy factory traffic over these gullies). In most cases a 4” or 6”SCH10 outlet is required because these are most popular with American Multinational Pharmaceutical companies who have scheduled stainless steel pipework to connect to, but this can easily be substituted for a 110mm or 160mm outlet pipe. Customizable: Stainless Grade and Loading. Grade 304 (1.4301) or 316 (1.4401) Stainless Steel to BS EN 10088. Strong. Usable in both heavy and light duty areas. Suitable for internal factory drainage.
