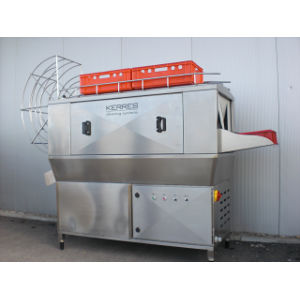

Compact tunnel washing maschine for fast and effective cleaning of light to medium soiled euro boxes:
The system is divided into a main wash and rinse zone. In the main-wash zone, the boxes are washed with hot water, which is maintened by the built-in tank heating at the desired constant temperature.
The water in the main wash zone is constantly filteredthrough a sophisticated filter system. The boxes are rinsed with clean fresh water. This water is then fed into the main tank of the washing zone where it is used again. Therefore minimal water, energy and chemical consumption together with maximum cleaning results.
Technical data:
Material: stinaless steel 1.4301
dimensions: 1600 (excluding infeed outfeeding table) x 800 x 1600 mm without one-man operation
length washing tunnel: 1600 mm
total length: 2600 mm
inlet/ outlet height: 970 mm
pump: 3,2 kW
pump flow rate: 450 l/h
tank heating: 9 kW
washing temperature: 30 - 60° adjustable
available in 2 versions:
CL 100 - S: 100 boxes / h
CL 200 - S: 200 boxes / h
