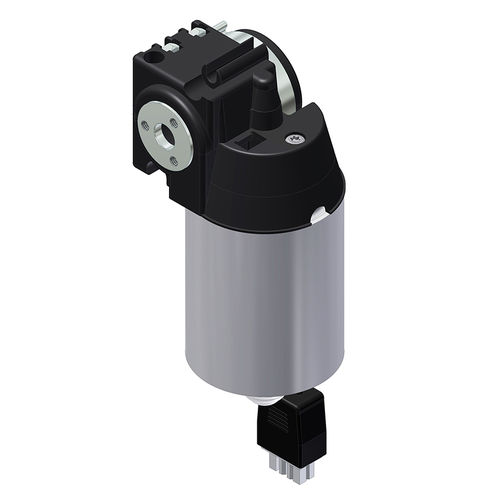

DC gear-motor 3143 series

wormright anglehollow-shaft

DC-Motor drive 3143 Powerful 24 V DC motor with worm gear and through going hexagon socket. Although the drive was developed for ergonomic table applications, it can be used in many other fields. A cable with AMP plug and an integrated Hall sensor allows easy and secure control of the entire system. Special features Two integrated Hall sensors for measurement of the revolutions and direction of rotation Through going hexagon socket in wrench widths 6 mm, 7 mm, 9 mm Available as “power package” or as “high speed” variant 1200 mm motor cable with connector included Good self-locking properties Can be combined with all Ketterer spindle systems Technical notes The drive working range (nominal torque) is determined for a service life of 10,000 double strokes. Through the controller* the system is regulated such that the speed in the entire drive working range is kept as constant as possible. By using a controller with a short-circuit brake the holding torque position of the drive can be increased. * In combination with LogicData control box Compact-3
