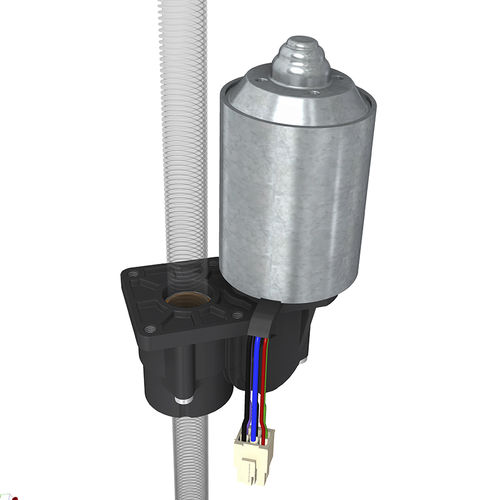

Motor drive for through going spindle 4779
Powerful 24 V DC motor with worm gear, designed for an axis parallel
through going spindle. Ideal for integration in a lift column.
The drive is only suitable for axial pressure load.
A cable with standard connector and integrated Hall sensor technology
permit simple and secure control of the entire system.
Two integrated Hall sensors for measurement of the revolutions and direction of rotation
Different type of internal thread for through going spindles
Good self-locking properties
Fast and powerful
Order spindle separately
The variants are formed by different internal thread types for connecting the spindles.
Spindle not included; must be ordered separately.
Attention: The drive is only suitable for axial pressure load. Note correct installation position (see installation example).
The drive must be protected against lateral forces by a guide system.
The drive working range (nominal torque) is determined for a service life of 10,000 double strokes.
By using a controller with a short-circuit brake the holding torque position of the drive can be increased.
The controller* regulates the system in such a way that the travel speed in the entire drive working range is kept as constant as possible.
* In combination with LogicData control box Compact-3
