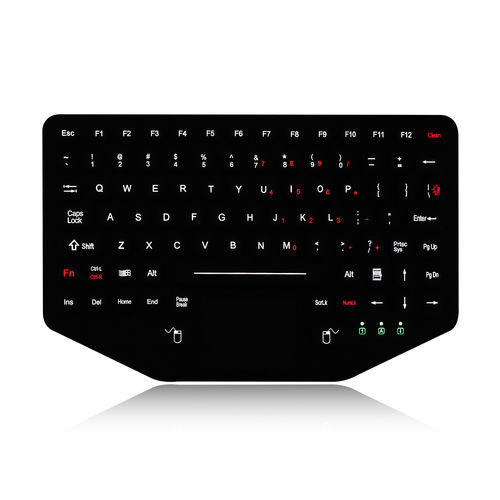

Panel-mount keyboard K-TEK-M275TP-FN-BL-NV-EMC-151B
with mechanical keyswith Fn keywith 2 mouse keys

panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
with Fn key, with 2 mouse keys, 89-key
Pointing device
with touchpad
Domain
military
Material
silicone rubber
Protection level
rugged, waterproof, rugged, anti-interference, MIL-STD 810F, MIL-STD-461G, IP65, EMC
Other characteristics
compact, long-travel, custom, backlit, silicone-key, USB

Description

89 keys IP65 dynamic sealed and ruggedized silicone rubber military keyboard with sealed and tough touch pad for fast and accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, the overall key layout is compact, with military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mounting, with adjustable backlight included. FN+CLEAN combination key to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from computer, sealed and ruggedized with top rubber for top panel mounting. Meet the military requirements of strong anti-interference, stability, and low radiation etc. Designed to meet MIL-STD-461G and MIL-STD-810F. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Top panel mount solution c. Material: Silicone rubber keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Backlight: White color g. Key Switch: Carbon-on-Gold key switch technology with gold PCB h. Dimension: 275.0mm x 169.70mm (L x W) i. Working Temperature: -40℃ to +75℃ j. Pointing Device:Ruggedized tough touchpad Lead-time: ASAP 2-3 weeks Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
