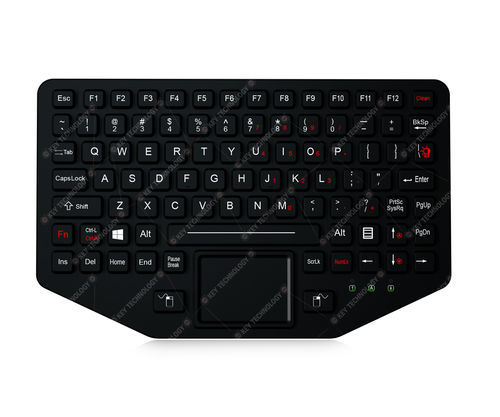

Panel-mount keyboard K-TEK-M275TP-FN-BL-NV-EMC-151B-V01

with mechanical keyswith 2 mouse keys89-key

Product Details
DESCRIPTION: 89 keys IP65 dynamic sealed and ruggedized silicone rubber military keyboard with sealed and tough touch pad for fast and accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, the overall key layout is compact, with military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mounting, with adjustable backlight included. FN+CLEAN combination key to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from computer, sealed and ruggedized with top rubber for top panel mounting. With exposed copper treatment surrounding the edges of backside PCB and designed without silicone rubber around the PCB edges for optimizing the sealing with cabinet and preventing electromagnetic leakage from the device. Meet the military requirements of strong anti-interference, stability, and low radiation etc. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSION: 283.0mm x 177.7mm (L x W)

MECHANICAL DATA

Keys	89 keys (including 2 mouse buttons)
Key top style	Protuberant rectangular keys with tactile feeling
Key Size	15.8mm x 15.8mm for normal keys
Key travel	1.50mm±0.10mm
Actuation Force	1.5N±0.2N (pressure point)
Switch life	more than 5 million of operations
Touch pad	1.3mm thick PCB, containing polyester film
Touchpad cover	Composite
More than Lifetime	10 million strokes
Mutual capacitance sensing	Yes
X/Y axis location detection resolution	40 Counts /mm
X/Y position report	relative
Output (self-detectable depending on cable)	PS2 or USB
Tracking speed	Maximum 1,016 m/sec
Power supply voltage	5VDC ± 0.25V
Current rating (active mode)	< 10 mA
G.W.	0.80KGs

ELECTRICAL DATA

Supply Voltage	DC +5V±5%
Current Rating	50mA when backlight is off, 300mA with backlight on
Meet MIL-STD-461G (EMC, EMI, EMS, ESD)	Yes
CE101	25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
CE102	10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
CS101	25Hz - 150kHz Conducted Susceptibility, Power Leads
CS106	Conducted Susceptibility, Transients, Power Leads
CS112	Electrostatic Discharge Susceptibility
CS114	4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
CS115	Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
CS116	10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
RE101	25Hz -100kHz Radiated Emissions, Magnetic Field
RE102	10kHz - 18GHz Radiated Emissions, Electric Field
RS101	25HZ - 100kHz Radiated Susceptibility, Magnetic Field
RS103	10kHz - 40GHz Radiated Susceptibility, Electric Field

ENVIRONMENTAL ADAPTABILITY

Operating temperature	-40℃ to +75℃
Storage temperature	-45℃ to +85℃
Operating RH	3%~95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
Shock	3x11 ms pulses of 50g on each of 3 axes
Vibration	POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours

RELIABILITY

RoHS, CE, FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.)
Protection Level	IP65 dynamic (front panel)
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min

APPLICATIONS
Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Key Features

• Category: Silicone Keyboard
• Key Number: 89 keys (including 2 mouse buttons)
• Key Travel: 1.50mm±0.10mm
• Backlight: White
• Interface: USB/PS2 optional
• Key Switch: Carbon-on-gold
• Protection Level: IP65 dynamic (front panel)
• Mounting Solution: Top panel mount
• Operating Temperature: -40℃~+75℃
• Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Technical Specifications

• Dimension: 283.0mm x 177.7mm (L x W)
• Key Size: 15.8mm x 15.8mm for normal keys
• Actuation Force: 1.5N±0.2N
• Switch life: >5 million operations
• Touchpad: 1.3mm thick PCB, polyester film
• Touchpad cover: Composite
• Output: PS2 or USB
• Tracking speed: Max 1,016 m/sec
• Power supply: 5VDC ± 0.25V
• Current rating: <10mA (active mode), 50mA (backlight off), 300mA (backlight on)
• Weight: 0.80KGs
• OS Compatibility: All Windows, Linux, Unix, Mac OSX, Vxworks, Android (U-cos--To be confirmed)
• Mounting: Top panel mount
• Sealing: IP65 dynamic (front panel)
• Certifications: RoHS, CE, FCC, MIL-STD-461G, MIL-STD-810H
