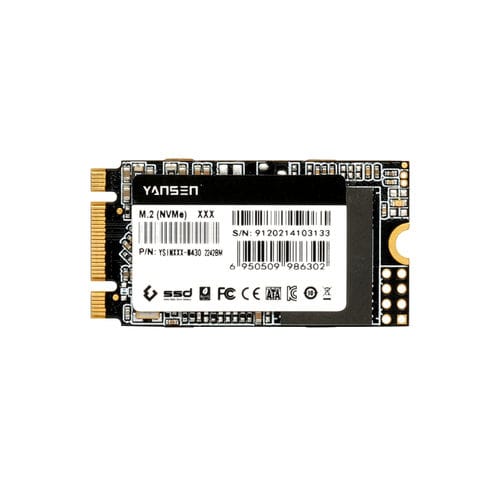

PCIe SSD YSINXXX-M430 2242

internalM.2industrial

Introducing the Yansen YSINXXX-M430 2242, an M.2 NVMe PCIe SSD that packs lightning-fast performance into a compact form factor. With a capacity range of 128-2TB and utilizing 3D TLC technology, this SSD delivers excellent speed and reliability. The short size makes it perfect for small form factor devices like portable devices, and its NVMe PCIe interface ensures quick data transfer rates. Enjoy blazing-fast read and write speeds of up to 3500/3000 MB/s, making this SSD an excellent choice for data-intensive applications. Specification Dimensions - M.2 2242 L42.0mm * W22.0mm * H3.5mm Error±0.15mm Input voltage - DC 3.3V±5% Power consumption Idle - 0.63W(Max) Power consumption Active - 4.19W(Max) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - LDPC Error Correction of Hardware Features - System automatic bad block management Operating Temp. - 0℃~70℃ Storage Temp. - -40℃~85℃ Humidity - 5-95% Vibration - 80Hz~2000Hz/20G Shock - 1500G/0.5ms
