PCIe SSD YSEX PRO series

NVMeinternal

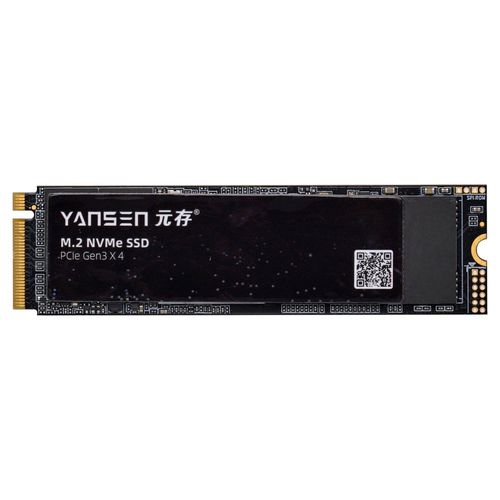

Yansen YSEX-XXX PRO is an NVM Express SSD designed as the standard M.2 form factor with PCIe interface and 3D TLC NAND Flash, capacity range is 256GB~2TB YSEX-XXX PRO supports PCIe Gen III x4, and it is compliant with NVMe 1.3 providing excellent performance. YSEX-XXX PRO with heat-spreading design dissipate heat generating from IC making SSD perform more stably. With sophisticated error detection and correction (ECC) functions, the module can ensure full End-to-end Data Path Protection that secures the data transmission between host system and NAND Flash. Yansen YSEX-XXX PRO provides ultra-speed and high IOPS and offers maximum capacity up to 2TB, making the SSD optimal for server and heavy data workload applications. Product Model - YSEX-XXX PRO Flash Type - TLC 4K Random Read - 186200 IOPS 4K Random Write - 186100 IOPS Operating Temperature - 0°C ~ +70°C Storage Temperature - -20°C ~ +75°C Humidity - 5%-95% RH non-condensing Shock - 1500G/0.5ms Vibration - 80Hz~2000Hz/20G Operating Voltage - DC 3.3V±5% Power Consumption - 8.6W Dimensions - L80.0mm*W22.0mm*H2.1mm ±0.1mm
