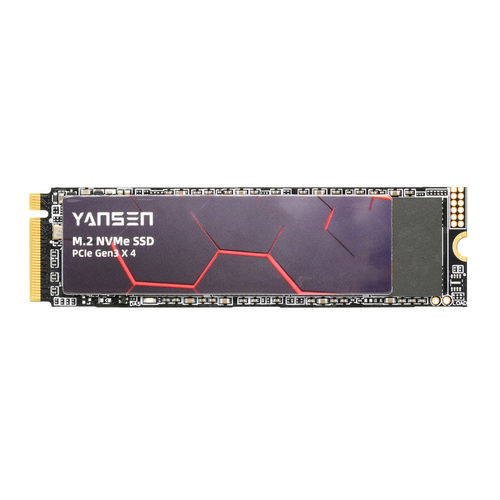

NVMe SSD YSINXXX-M430

internalM.2M.2 2280

Unleashing the Yansen YSINXXX-M430 2280, an impressive M.2 SSD designed to deliver fast and reliable storage solutions. This SSD is available in a capacity range of 128GB to 2TB and uses 3D TLC technology to ensure high performance. It features a PCIe Gen3 (8Gb/s) x4 interface and supports NVMe 1.4, providing lightning-fast read and write speeds of up to 3500/3000 MB/s. With a length of 80.0mm and M.2 M Key form factor, this SSD is versatile and suitable for various applications. It can operate in temperatures ranging from 0℃ to 70℃, guaranteeing dependable performance in varying circumstances. Specification Dimensions - M.2 2280 L80.0mm * W22.0mm * H2.1mm Error±0.1mm Input voltage - DC 3.3V±5% Power consumption Idle - 0.66W(Max) Power consumption Active - 4.39W(Max) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Hardware LDPC capable of correcting errors Features - Power management/TRIM/S.M.A.R.T./NCQ/Wear-leveling Operating Temp. - 0℃~70℃ Storage Temp. - -40℃~85℃ Humidity - 5-95% Vibration - 80Hz~2000Hz/20G Shock - 1500G/0.5ms
