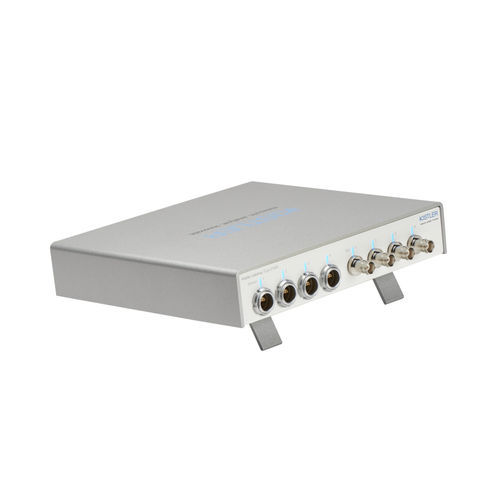

Differential amplifier 5166A

chargeconditioningacquisition

• Integrated, optional 24-bit data acquisition with up to 200 kSps per channel • Optional virtual channel feature (together with DAQ and PTP sync.) • Compatible with differential sensors like Kistler Types 6021A, 6023A, 6025A, 8207A, 8209A and 8211A The Kistler LabAmp Type 5166A is not only an outstanding low-noise charge amplifier for differential charge signals but also a powerful data acquisition device delivering the digitized measurement values directly to a host computer for further analysis. It is configured and operated in a web-interface, conveniently accessible by a standard web-browser or via KiStudio Lab Software Package Type 2910B (including post-processing software jBEAM Lab). Thanks to advanced signal processing technology, the Kistler LabAmp Type 5166A offers impressive flexibility. The frequencies of the high-pass, low-pass and notch filters can be directly entered as numeric values in Hertz. The input signals can be flexibly routed to the analog outputs. The graphical user interface not only offers a simple and intuitive way to configure the device but also displays different measurement values (e.g. live value, peak value, root mean square). The virtual channel functionality allows real-time summation of different input signals. Furthermore, the browser-based data download allows the acquired data to be processed in an analysis software. For more advanced tasks or direct processing, the amplifier can be integrated directly into your own software via our REST API or into LabVIEW thanks to the provided Virtual Instruments driver.
