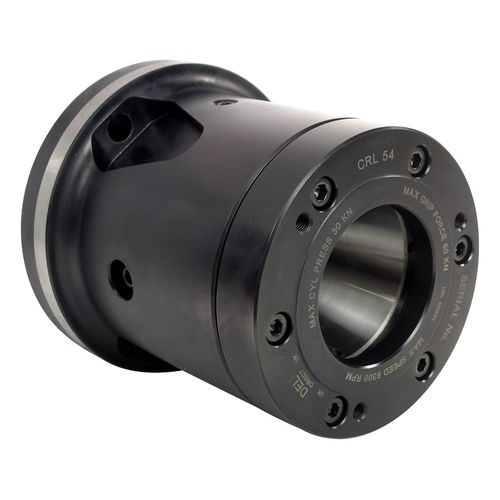

Clamping sleeve collet chuck CRL54A6

dead length colletfor machiningfor turning applications

Overview
Long series power collet chuck for barfeed and lathe-spindle mounting, available in multiple mount types and compatible with spring, Varibore and rubberflex collets.

Key Features

• Gripping range (mm): 1.6 - 54
• Sleeve stroke (mm): 10
• Maximum speed (min-1): 6300
• Max input force (kN): 30
• Max gripping force (kN): 60
• Matching cylinder: S1552

Collet compatibility

• Suitable for D853E spring collets (high-accuracy second operation)
• Compatible with D120 Varibore collets (2–3 mm range for first operation)
• Also compatible with rubberflex collets

Design & application

• Designed to work with bar pushers/barfeeders and to mount directly to lathe spindles or via precision adaptor plates
• Long body and wide range to accommodate high-accuracy spring collets while maximising external tool clearance; series capacities up to 80 mm
• Fixed-length collet keeps the workpiece position stable during actuation for precise Z-axis positioning; tapered sleeve compresses the collet to grip the workpiece
• First & second operation capability: Varibore and rubberflex for rough unfinished bar (first op), spring collets for high accuracy (second op)
• Supplied with mounting bolts; optional custom machined drawtube connector available for immediate installation
• Case-hardened components for optimized rigidity and long service life; direct-mount design for high concentricity at speed
• Interchangeable with B-200 Series Power Chucks

Technical specifications

• Model: CRL54A6
• Gripping range (mm): 1.6 - 54
• Sleeve stroke (mm): 10
• Maximum speed (min-1): 6300
• Max input force (kN): 30
• Max gripping force (kN): 60
• Weight (kg): 15
• Matching cylinder: S1552
• Suitable collets: D853E (spring), D120 (Varibore); rubberflex compatible
• Interchangeable with: B-200 Series Power Chucks
