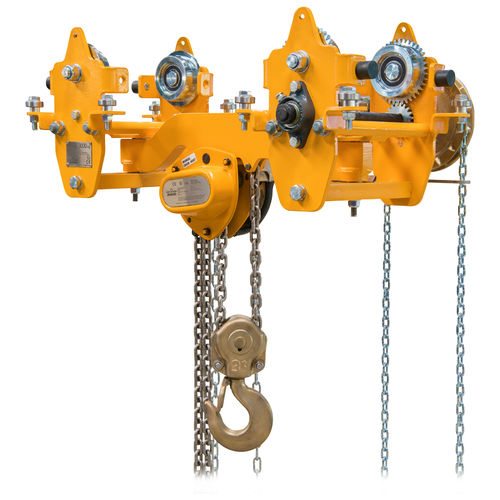

Manual hoist trolley

articulatedATEX

Designed for extremely small curved beams Suitable for extremely narrow spaces in and low headroom applications Equipment classification Gas II 2G EX h IIB T3 Gb (zone 1) Equipment classification Dust II 2D EX h IIIB T200°C Db (zone 21) Low pulling force on the hand chain Chain hoist executed with double safety pawl, safe and sure brakes Chain hoist with overload protection by slipping clutch Surface treatment 2 layer paint system and power coating, colour Munsell 6YR6/14 Nickel plated load chain, grade V (G 100) in acc. with standard EN818-7 Hand chain electric galvanized Trolley wheels with life time lubricated bearings Wheel break support and anti-tilt device integrated Rubber buffers mounted on trolley Ambient temperature -20°C / +40°C The articulated low headroom trolley hoist units are executed with a fixed suspension set within the range of the beam width as mentioned in the tables. The minimum radius is mentioned in the table is for indication and need to be verified once the monorail beam is specified. Equipment is executed with non-sparking materials for fast mechanical contact parts for hand chain movements and internal fast moving hoist parts, extended with unique and reliable bronze coated load hooks.
