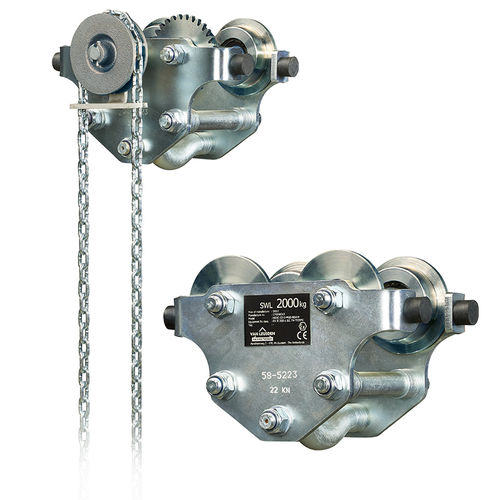

Manual hoist trolley HD3C

beam mountedgearcompact

Designed and manufactured according to: - EC machinery directive 2006/42/EC - EN13157 - Manufactured in the Netherlands FEATURES • - Unique 3 bolt design which ensures stability and safe situation • - Adjustable suspension bolts (see table) • - Wheel break support and anti-tilt device integrated • - Trolley wheels with life time lubricated bearings • - Suitable for all types of beams • - Surface treatment trolley electric galvanized up to 64kN larger chassis are 2 layer paint system, RAL7021 • - Hand chain electric galvanized OPTIONAL • - Explosion protected execution • - Special surface protection according to ISO 12944 • - Parking device for parking in unloaded condition • - Rubber buffers mounted on trolley • - 3.1 load test certificate • - ¬3.1 material certificate for load bearing trolley parts REMARK The minimum beam radius is based on the maximum beam width which is specified in the table. For smaller curved beams always contact us or your local agent for clarification. Maximum INP profile restriction for 6kN = INP220, 11kN = INP300, 22kN = INP360, 33kN = INP400, 52/64kN = INP450
