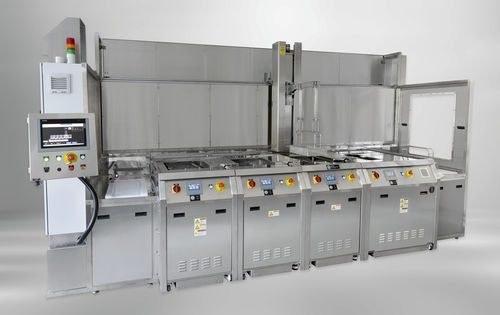

The expandable and versatile modular design of the DMS, allows for individual changes in the cleaning and drying process. Expandable modules: Passivation & Vacuum Drying. Available with or without automation. The DMS offers a wide range of ultrasonic frequencies to meet your washing and rinsing needs. Several standard plug & play options, including filtration, automatic fill/drain, conductivity monitoring and more. **Fast delivery - stock on hand for 2 common module sizes. Custom sizes available.
electropolished surface
rounded corners
all piping and valves made of stainless steel
Tri Clamp connections for easy disassembly and cleaning of the piping system
Leakage sensors in each chamber
305 x 460 x 254 mm with 40 kHz/1000 W ultrasonic power
460 x 660 x 406 mm with 132 kHz/2000 W ultrasonic power
All trays with rounded corners and electropolished surface
Additional frequencies available for immediate delivery.
Direct cementing
25/40/58/132/192 kHz with each other
combined by patented
double mixing frequency process.
Plate technology with patented
Megasonic sweep frequencies in
280/360/470/720/1000 kHz
Automation up to 90kg possible
Pump/filtration modules with quick connect hoses.
Automatic filling and emptying
Automatic dosage of detergent
Spray and AirKnife registers for all rinsing modules
Sensors for measuring conductivity/resistivity/ph/concentration
Swiveling blow-off device built into the dryer
Manual spray and blow-off device
