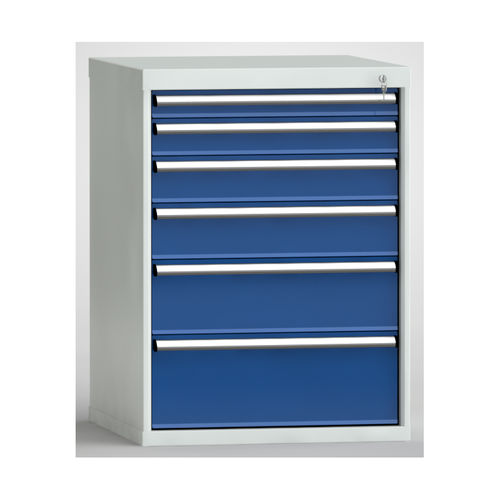

6-drawer tool cabinet SGB 6

Short description
The SGB series industrial drawer cabinet is a metal workshop and industrial tool cabinet with six fully extensible drawers and central lock.

Main features

• 100% full extension (VN): ball-bearing drawers fully extend for optimal access and overview.
• Load capacity: up to 75 kg per drawer with evenly distributed load (specified for VN extension).
• Central locking: integrated central lock to protect against unauthorized access.
• Single-drawer lock (anti-tilt): only one drawer can be opened at a time to increase stability and safety.
• Modular SGB system: standardized width and depth, extendable and compatible with SGB accessories (plinth, drop edges, divider material, etc.).
• Finish: industrial-grade coated surface; robust steel construction for continuous use.

Product details (short)
Drawer cabinet H: 800 mm W: 725 mm D: 750 mm
Installation dimension: 700 mm (additional data on page: 750 mm) Configuration: 36x36 units
With central lock and 6 drawers (with slotted grid): 75VN/75VN/100VN/100VN/150VN/200VN
VN: 100% extendable, load capacity 75 kg with evenly distributed load

Technical characteristics / table
Dimensions (H x W x D): 800 x 725 x 750 mm
Installation dimension / configuration: 750 mm / 36 x 36 units
Installation dimension (feature): 700 mm
Drawer distribution: 6 drawers with slotted grid
Extension & load: 100% full extension (VN) / 75 kg per drawer
Safety features: central locking & single-drawer lock (anti-tilt)

Further details (from product features)

• Model: SGB0800-06-001 (product code on the page)
• Slotted grid frame: yes
• Max load per drawer: 75 kg
• Extension type: full extension 75 kg
• Locking system: central locking
• Number of housings: 1
• Height: 800 mm
• Number of drawers: 6
• Width: 725 mm
• Depth: 750 mm

Specifications / technical data

• Dimensions: 800 x 725 x 750 mm (HxWxD)
• Installation dimension (stated): 700 mm (feature) / 750 mm (table)
• Configuration: 75 / 75 / 100 / 100 / 150 / 200 (drawer layout)
• Drawers: 6 pieces, slotted grid frame
• Extension: VN (full extension), 100% extendable
• Load capacity per drawer: 75 kg (with evenly distributed load)
• Safety functions: central locking, single-drawer lock (anti-tilt)
• Modular system: SGB - extendable with accessories (plinth, drop edge, divider material)
• EAN: 4051152240734
