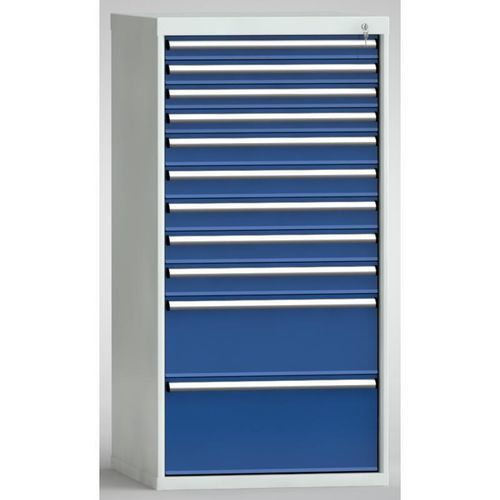

11-drawer tool cabinet SGB1450-11EP-001

Overview
Drawer cabinet H: 1450 mm W: 725 mm D: 750 mm
Installation dimension: 1350 mm, division: 36x36 units
Equipped with central lock and 11 drawers (with slotted grid).

Drawer distribution
75EA/75EA/75EA/75EA/100EA/100EA/100EA/100EA/100EA/250EA/300EA

Extension type and load capacity

• EA (Partial extension): 90% extendable, load capacity 100 kg (evenly distributed)
• VN (Full extension): 100% extendable, load capacity 75–100 kg (depending on type/spec)
• VU (Full extension, heavy duty): 100% extendable, load capacity 200 kg

Equipment
Central locking, slotted-grid frame installed.

Colour options (standard variants)
Frame / Body colour

• RAL 3000 - Fire red
• RAL 2004 - Pure orange
• RAL 7016 - Anthracite grey
• RAL 6011 - Reseda green
• RAL 7035 - Light grey (standard)
• RAL 5005 - Signal blue
• RAL 5010 - Gentian blue
• RAL 5012 - Light blue
• RAL 5015 - Sky blue
• RAL 9005 - Jet black

Front colour

• RAL 3000 - Fire red
• RAL 2004 - Pure orange
• RAL 7016 - Anthracite grey
• RAL 6011 - Reseda green
• RAL 7035 - Light grey
• RAL 5005 - Signal blue
• RAL 5010 - Gentian blue (standard)
• RAL 5012 - Light blue
• RAL 5015 - Sky blue
• RAL 9005 - Jet black

Usage note
EA drawers are partial-extension type (not fully pulled out) and are suitable for evenly distributed loads up to 100 kg. For full-extension variants (VN, VU) refer to the higher extension and load values. The central lock secures the entire cabinet; the single-drawer locking mechanism prevents tipping (only one drawer can be opened at a time).

Technical characteristics / specifications

• Division: 75/75/75/75/100/100/100/100/100/250/300
• Model: SGB1450-11-001
• Slotted-grid frame: yes
• Max drawer load: 100 kg (EA, evenly distributed)
• Installation dimension (mm): 1350
• Extension type: Partial extension 100 kg (EA)
• Lock type: Central locking
• Number of units: 1
• Height: 1450 mm
• Number of drawers: 11
• Width: 725 mm
• Depth: 750 mm
