Beech workbench WP782N-1500M45-E0012

for workshopswith drawermulti-drawer

Product description

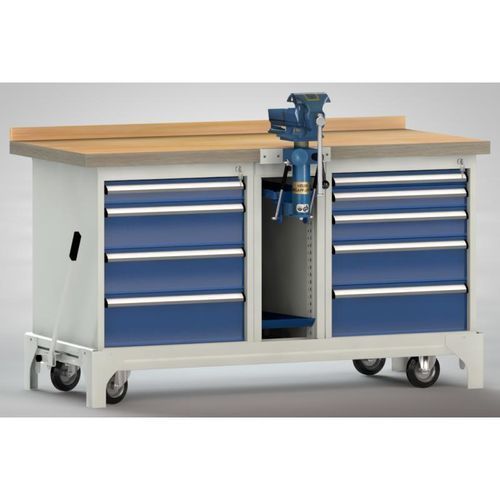

Mobile professional workbench - 1700 x 700 x 871 mm (L x D x H) with beech multiplex top 1700 x 700 x 45 mm and backboard. Mobile configuration with multiple drawer units, a central vise cabinet and a lift system.

Equipment

• Worktop: beech multiplex 1700 x 700 x 45 mm, with backboard
• Left: drawer units 75EA / 150EA / 150EA / 175EA
• Center: vise cabinet with vise (jaw width 120 mm) and lift
• Right: drawer units 50EA / 75EA / 100EA / 150EA / 175EA
• Equipped with lift system with side tilt lever

Color options
Frame / body color

• RAL 3000 - Flame red
• RAL 2004 - Pure orange
• RAL 7016 - Anthracite grey
• RAL 6011 - Reseda green
• RAL 7035 - Light grey (standard)
• RAL 5005 - Signal blue
• RAL 5010 - Gentian blue
• RAL 5012 - Light blue
• RAL 5015 - Sky blue
• RAL 9005 - Jet black

Front color

• RAL 3000 - Flame red
• RAL 2004 - Pure orange
• RAL 7016 - Anthracite grey
• RAL 6011 - Reseda green
• RAL 7035 - Light grey
• RAL 5005 - Signal blue
• RAL 5010 - Gentian blue (standard)
• RAL 5012 - Light blue
• RAL 5015 - Sky blue
• RAL 9005 - Jet black

Delivery information
Ready for dispatch in 10 working days.

Technical specifications

• Frame type: G797
• Model series: G797-1000
• Variant: G797-1000-7020
• Item number (SKU): WP797N-1700M45-E7020
• EAN: 4051152308922
• Standard/Professional/Ergo: Professional
• Worktop thickness: 45 mm
• Worktop: beech multiplex
• Subframe: welded / other
• Vise: jaw width 120 mm (in central vise cabinet)
• Lift system: with side tilt lever (lift)
• Drawer pull-out type: single extension 100 kg
• Number of drawers: 9 (distribution in blocks left/center/right see Equipment)
• Number of housings/undercarriages: 3
• Number of fixed casters: 2
• Number of swivel casters: 2
• Wheel diameter: 125 mm
• Height: 871 mm
• Width: 1700 mm
• Depth: 700 mm
• Surface load capacity: 1000
• Max. drawer load: 100
• Height adjustable: No
• Mobile: Yes
• Construction: welded
