Beech workbench WP834N-1200M30-E7045

for workshopswith drawermulti-drawer

Description

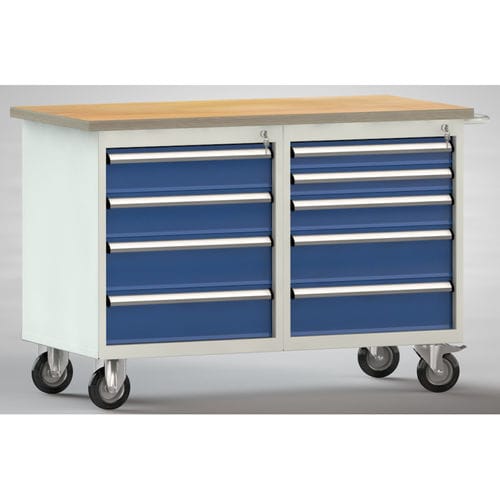

Mobile workbench 1200 x 700 x 840 mm with beech multiplex top 1200 x 700 x 30 mm. Designed as a wheeled unit with two cabinet housings and multiple drawer blocks for workshop use.

Equipment

• Worktop: beech multiplex 1200 x 700 x 30 mm
• Left configuration (BEA0650): drawers 125 / 125 / 150 / 150
• Right configuration (BEA0650): drawers 75 / 75 / 100 / 150 / 150
• Sliding handle
• Castors: 2 swivel castors with brake and 2 fixed castors, Ø 125 mm
• EA drawers: 90% extension, load capacity 100 kg (evenly distributed)
• Total castor capacity: 350 kg

Note
Further information can be found in the technical data and specifications below.

Technical specifications

• Frame type: G834
• Model series: G834-1200
• Variant: G834-1200-7034
• Category: Profi
• Block 1 (drawer layout): 125 / 125 / 150 / 150
• Block 2 (drawer layout): 75 / 75 / 100 / 150 / 150
• Worktop material: beech multiplex
• Worktop thickness: 30 mm
• Frame: cabinet
• Drawer slide type: single extension 100 kg (per drawer)
• Locking: central locking
• Height adjustable: No
• Mobile: Yes (with castors)
• Construction: welded
• Number of housings: 2
• Number of drawers: 9
• Width: 1200 mm
• Depth: 700 mm
• Height: 840 mm
• Max load per drawer (EA / extension): 100 kg
