Beech workbench WPHL01-20M45-X3D01

for workshopsfoldablefully-welded

Overview

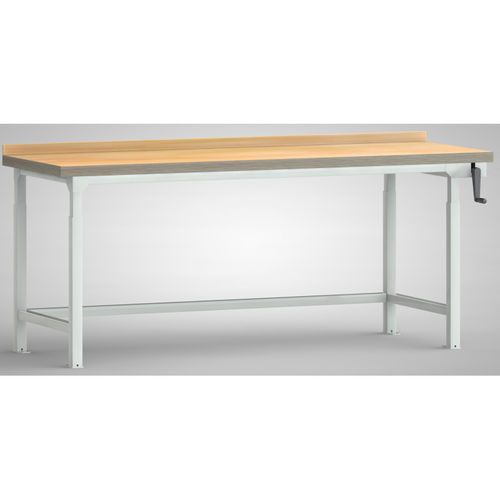

Hydraulic professional workbench - 2000 x 800 x 750 - 1050 mm L x D x H
with beech multiplex top 2000 x 800 x 45 mm, with rear panel
Hydraulically height-adjustable with foldable right-hand crank

Technical description
Hydraulic professional workbench with adjustable working height from 750 to 1050 mm (stroke 300 mm). Load capacity / surface load: 300 kg (relative to the specified surface). Lower rear cross-member welded.

Worktop properties
The beech multiplex top provides high stability and load-bearing capacity. It is low-warping, dimensionally stable and offers high screw retention; suitable for a wide range of uses.

Colour options / variants

• RAL 3000 - Flame red
• RAL 2004 - Pure orange
• RAL 7016 - Anthracite grey
• RAL 6011 - Reseda green
• RAL 7035 - Light grey (standard, preselected)
• RAL 5005 - Signal blue
• RAL 5010 - Gentian blue
• RAL 5012 - Light blue
• RAL 5015 - Sky blue
• RAL 9005 - Jet black

Standard vs. Professional comparison
Standard | Professional
No rear panel | With rear panel
40 mm thick top | 45 mm thick top
Drawers without slot rails | Drawers with slot rails (suitable for partition material)

Ergonomics note
As an ergonomic rule of thumb, the worktop should be roughly at hip-bone height (typically between 85 and 95 cm). Height-adjustable models are ideal for varying operators.

Specifications / Technical data

• Frame type: GHL01
• Model series: GHL01-2000
• Variant: GHL01-2000-01
• Category: Professional - Hydraulic
• Worktop: Beech multiplex
• Worktop thickness: 45 mm
• Subframe: Square-profile frame
• Height-adjustable: Yes (working height 750 - 1050 mm, stroke 300 mm)
• Maximum height (mm): 1050
• Base height (mm): 750
• Width: 2000 mm
• Depth: 800 mm
• Stroke height (mm): 300
• Load capacity / surface load: 300 kg
• Construction: welded
• Mobile: No
• Weight (product): 95 kg
• EAN: 4051152096867
