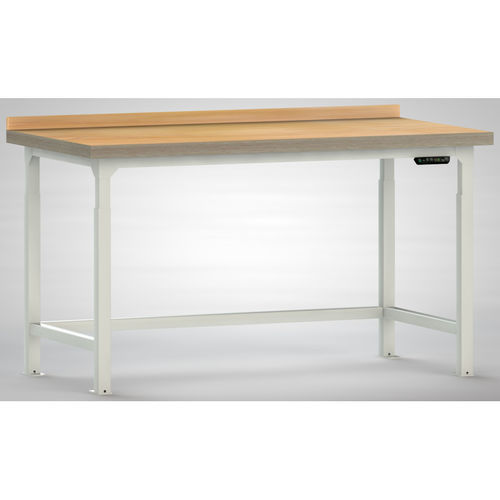

Beech workbench WPJL01-15M45-X3D01

fully-weldedheight-adjustableelectric

Product description
Hydraulic professional workbench - 1500 x 800 x 750 - 1030 mm L x D x H, with beech multiplex top 1500 x 800 x 45 mm, with backboard.
Hydraulically height-adjustable with electric drive 04/EA-MB-4, with memory board.
Working height adjustable from 750 - 1030 mm (stroke 280 mm; load capacity: 300 kg distributed load).
Lower rear clearance welded.

Variants / Selection

• Frame/corpus colour: RAL 3000 - Flame red
• Frame/corpus colour: RAL 2004 - Pure orange
• Frame/corpus colour: RAL 7016 - Anthracite grey
• Frame/corpus colour: RAL 6011 - Reseda green
• Frame/corpus colour: RAL 7035 - Light grey (factory)
• Frame/corpus colour: RAL 5005 - Signal blue
• Frame/corpus colour: RAL 5010 - Gentian blue
• Frame/corpus colour: RAL 5012 - Light blue
• Frame/corpus colour: RAL 5015 - Sky blue
• Frame/corpus colour: RAL 9005 - Jet black

Special features

• Beech multiplex worktop, 45 mm thick
• Hydraulically height-adjustable with electric drive and memory board
• Adjustable working range 750–1030 mm (stroke 280 mm)
• Load capacity / surface load: 300 kg
• Frame: square-profile, welded construction
• Backboard included
• Lower rear clearance welded
• Not mobile (stationary)

Characteristics / Technical specifications

• Item no.: WPJL01-15M45-X3D01 7035
• Frame type: GJL01
• Model series: GJL01-1500
• Variant: GJL01-1500-01
• Standard/Pro/Ergo: Pro - Hydraulic
• Worktop: Beech multiplex
• Frame: Square-profile
• Height-adjustable: Yes
• Mobile: No
• Construction: Welded
• Max. height: 1030 mm
• Worktop thickness: 45 mm
• Stroke: 280 mm
• Height (base position): 750 mm
• Width: 1500 mm
• Depth: 800 mm
• Surface load (capacity): 300 kg
• EAN: 4051152090537
