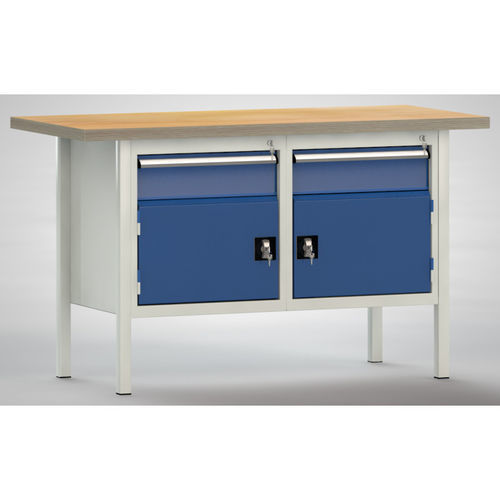

Beech workbench WS177E-1500M40-E1650

2-drawerdouble-doorfully-welded

Description
Standard workbench - 1500 x 700 x 900 mm (L x D x H), ERGO version, with beech multiplex top 1500 x 700 x 40 mm. More information in the following sections.

Equipment

• Left: 150EA / door 350 mm
• Right: 150EA / door 350 mm
• Base elements with plastic adjustable feet

Colors / variants

• Frame/cabinet color: RAL 3000 - Flame red; RAL 2004 - Pure orange; RAL 7016 - Anthracite grey; RAL 6011 - Reseda green; RAL 7035 - Light grey; RAL 5005 - Signal blue; RAL 5010 - Gentian blue; RAL 5012 - Light blue; RAL 5015 - Sky blue; RAL 9005 - Jet black
• Front color: RAL 3000 - Flame red; RAL 2004 - Pure orange; RAL 7016 - Anthracite grey; RAL 6011 - Reseda green; RAL 7035 - Light grey; RAL 5005 - Signal blue; RAL 5012 - Light blue; RAL 5015 - Sky blue; RAL 5010 - Gentian blue; RAL 9005 - Jet black

Note on ERGO variant
Work height 900 mm (Standard) or 905 mm (Profi).

Difference Standard / Profi
Standard
Profi
No back panel
With back panel
40 mm thick top
45 mm thick top
Drawers without slot grid
Drawers with slot grid

Further information
Top: Beech multiplex (high stability, dimensionally stable, low warp, high screw retention).

Technical specifications

• Item no. (SKU): WS177E-1500M40-E1650
• EAN: 4051152168748
• Model series: G177-1500
• Frame type: G177
• Variant: G177-1500-1650
• Standard/Profi/Ergo: Standard ERGO
• Number of wing doors: 2
• Number of bodies: 2
• Number of drawers: 2
• Block 1 / Block 2: 150/350T
• Top: Beech multiplex, thickness 40 mm
• Subframe: square tube profile
• Construction: welded
• Drawer extension type: single extension 100 kg
• Locking type: central locking
• Height adjustable: No
• Mobile: No
• Height: 900 mm
• Width: 1500 mm
• Depth: 700 mm
• Surface load capacity: 1500 kg
• Weight (product): 103 kg
