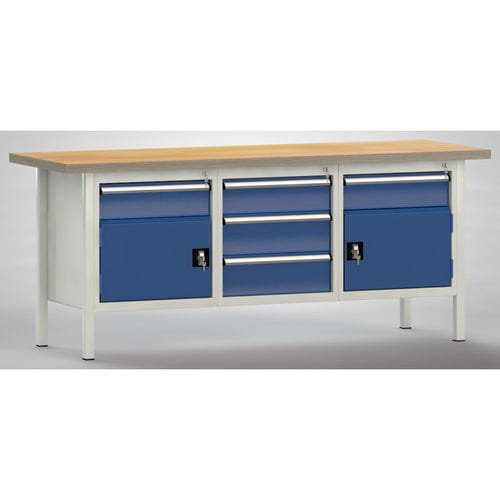

Beech workbench WS247N-2000M40-E7025

for workshops5-drawerdoor

Description
Standard workbench - 2000 x 700 x 840 mm (L x D x H)
with beech multiplex top 2000 x 700 x 40 mm

Equipment

• Left: 150EA / door 350 mm, left-hinged
• Center: 150EA / 175EA / 175EA
• Right: 150EA / door 350 mm, right-hinged

Colors / Variants

• Frame/body color (examples): RAL 3000 Fire red, RAL 2004 Pure orange, RAL 7016 Anthracite grey, RAL 6011 Reseda green, RAL 7035 Light grey (standard), RAL 5005 Signal blue, RAL 5010 Gentian blue, RAL 5012 Light blue, RAL 5015 Sky blue, RAL 9005 Jet black
• Front color (examples): RAL 3000 Fire red, RAL 2004 Pure orange, RAL 7016 Anthracite grey, RAL 6011 Reseda green, RAL 7035 Light grey, RAL 5005 Signal blue, RAL 5010 Gentian blue (standard), RAL 5012 Light blue, RAL 5015 Sky blue, RAL 9005 Jet black

Standard / Profi comparison
Standard | Profi
No back panel | With back panel
40 mm top | 45 mm top
Drawers without slot partitioning | Drawers with slot partitioning

Benefits of beech multiplex top
The beech multiplex top offers high stability and load capacity, low tendency to warp, dimensional stability, high screw retention and versatile use.

Characteristics / Technical specifications

• Number of hinged doors: 2
• Frame type: G247
• Model series: G247-2000
• Variant: G247-2000-7025
• Standard/Profi/Ergo: Standard
• Block 1: 150/350T
• Block 2: 150/175/175
• Block 3: 150/350T
• Worktop: beech multiplex (2000 x 700 x 40 mm)
• Worktop thickness: 40 mm
• Underframe: square profile
• Construction: welded
• Drawer type: single-extension 100 kg
• Locking: central locking
• Height adjustable: No
• Mobile: No
• Number of housings: 3
• Number of drawers: 5
• Height: 840 mm
• Width: 2000 mm
• Depth: 700 mm
• Door height in mm: 350
• Max. drawer load (symbolic): 100
• Surface load capacity: 1500
