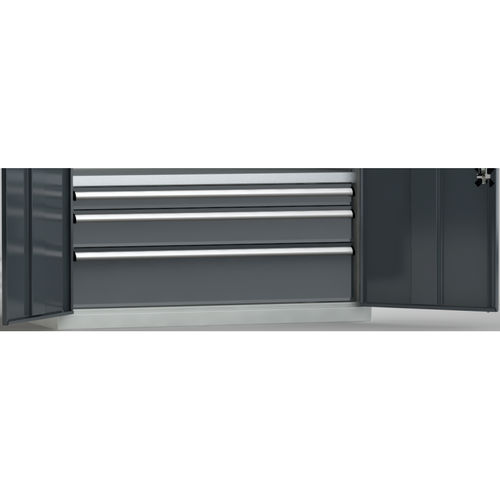

Storage cabinet 7FS-PPX-100U-SVX

built-inwith drawer

Short description
Cabinet drawer with 100 mm front height (VU). Division: 57 x 27 E. Slotted rail frame, full base and ball-bearing guide rails. Full-extension 'U' = 100% extension, load capacity 200 kg with evenly distributed load. Designed for cabinet size 1108 x 656 mm (W x D). Usable dimensions (H x W x D): 80 x 955 x 450 mm.

Features / construction

• Slotted rail frame
• Full base
• Ball-bearing guide rails, full-extension 'U'
• 100% extension (full-extension)
• Load capacity (VU): 200 kg with evenly distributed load
• Intended for installation in cabinet size 1108 x 656 mm (W x D)

Color options (frame/body color)

• RAL 3000 - Flame red
• RAL 2004 - Pure orange
• RAL 7016 - Anthracite grey (standard / selected)
• RAL 6011 - Reseda green
• RAL 7035 - Light grey
• RAL 5005 - Signal blue
• RAL 5010 - Gentian blue
• RAL 5012 - Light blue
• RAL 5015 - Sky blue
• RAL 9005 - Jet black

Delivery information
Ready for shipment in 10 working days.

Technical specifications

• Shell height: 70 mm
• Front height: 100 mm
• Usable height: 80 mm
• Width: 955 mm
• Depth: 450 mm
• Usable dimensions (H x W x D): 80 x 955 x 450 mm
• Max. load attribute (as product feature): 100
• Drawer load capacity (VU, evenly distributed): 200 kg
• Product weight: 13.5 kg
• EAN: 4051152432108
