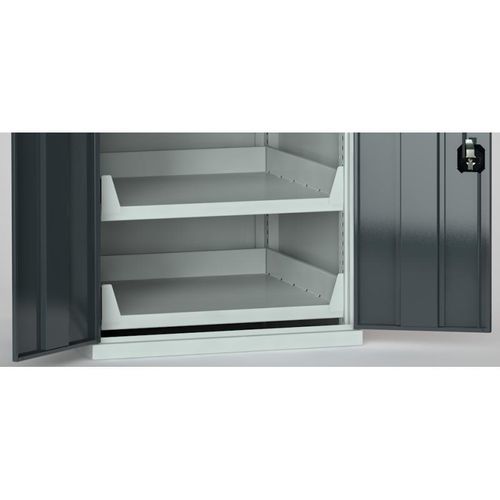

Storage cabinet 7FS-PPX-AT125U-NVX

built-inshelfdraw-out

Short description
Pull-out shelf - VU (full-extension) without slotted upright frame, with full bottom and guide rails.

Description
Pull-out shelf suitable for cabinet size 1108 x 656 mm (W x D). Installation height: 125 mm. Full-extension (VU) with 100% travel and high load capacity, designed to carry heavy loads when evenly distributed. Full bottom included with guide rails; delivered without slotted upright frame.

Product reference
Article No.: 7FS-PPX-AT125U-NVX

Variants / options

• Frame/body color: RAL 3000 - Fire red
• Frame/body color: RAL 2004 - Pure orange
• Frame/body color: RAL 7016 - Anthracite grey
• Frame/body color: RAL 6011 - Reseda green
• Frame/body color: RAL 7035 - Light grey (factory setting)
• Frame/body color: RAL 5005 - Signal blue
• Frame/body color: RAL 5010 - Gentian blue
• Frame/body color: RAL 5012 - Light blue
• Frame/body color: RAL 5015 - Sky blue
• Frame/body color: RAL 9005 - Jet black

Installation / dimensions
Suitable for cabinet size: 1108 x 656 mm (W x D). Installation height (height/step): 125 mm.

Usage notes
Full-extension provides complete access to the interior; ensure even load distribution when loading. Ready for dispatch in 10 working days (product information).

Technical specifications

• Extension type: VU (full-extension), 100% extendable
• Maximum drawer load / capacity: 200 kg (with evenly distributed load)
• Installation height: 125 mm
• Fits cabinet size: 1108 x 656 mm (W x D)
• Full bottom with guide rails (without slotted upright frame)
• Product weight: approx. 13.2 kg
• Available frame/body colors: multiple RAL options (see variants)
