Robust locker 08/87S-12

ventilatedmultiplemanual

Short description

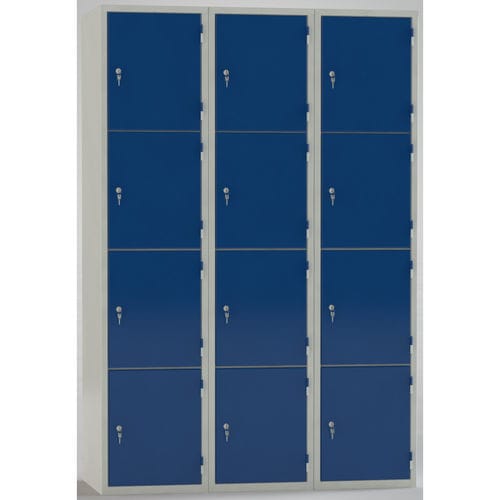

Lockable compartment cabinet with 3 x 4 compartments. External dimensions (H x W x D): 1850 x 1200 x 500 mm. Internal dimensions per compartment (H x W x D): 445 x 372 x 480 mm. Clear opening per compartment (H x W): 420 x 330 mm. Perforated rear panel for ventilation. Doors lockable with cylinder locks. Each cylinder lock supplied with 2 keys.

Function & equipment
Steel sheet construction. Shelf supports allow adjustment of shelves in 20 mm increments using slot rails. Each compartment is individually keyed (2 keys per lock). Multiple front and body colours available.

Safety & load capacity
Cylinder locks (robust version). In combination with three-point locking this provides high protection against unauthorized access. Shelf load capacity: standard ≥ 80 kg (evenly distributed); heavy-duty variants up to approx. 200 kg (evenly distributed).

Colour selection

• Frame / body (example): RAL 7035 - Light Grey (Standard)
• Fronts (example): RAL 5010 - Gentian Blue (Example)
• Other available RAL colours: RAL 3000, RAL 2004, RAL 7016, RAL 6011, RAL 5005, RAL 5012, RAL 5015, RAL 9005

Notes
Ready for dispatch in approx. 10 working days. Tall cabinets should be anchored to floor/wall to prevent tipping.

Technical specifications

• Material: steel sheet
• Overall dimensions (H x W x D): 1850 x 1200 x 500 mm
• Internal height per compartment: 445 mm
• Internal width per compartment: 372 mm
• Internal depth per compartment: 480 mm
• Clear opening per compartment (H x W): 420 x 330 mm
• Total number of compartments: 8 (3 side-by-side x 4 stacked)
• Compartments side-by-side: 3
• Compartments stacked: 4
• Lock type: cylinder lock (2 keys per lock)
• Shelf adjustment: every 20 mm using shelf supports
• Shelf load capacity: standard ≥ 80 kg (evenly distributed), heavy-duty variants up to 200 kg
• Surface / colour options: RAL colours (incl. RAL 7035, RAL 5010)
• Special features: perforated rear panel for ventilation
• EAN (reference variant): 4051152841542
