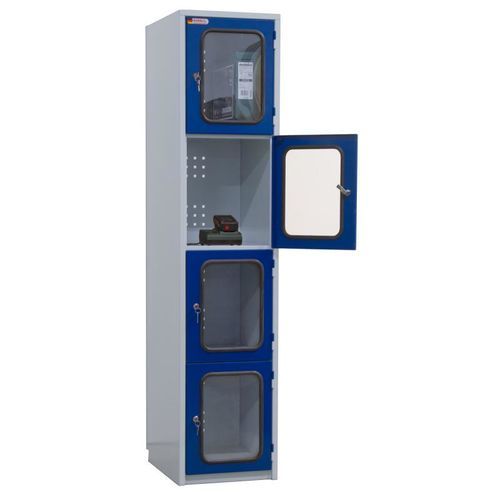

AC charging station 08/87S-4-AKKU

cabinet4 charging cables

Description
Charging locker / charging cabinet with 1 column × 4 compartments. Overall dimensions 1850 × 400 × 500 mm (H × W × D). Each compartment equipped with an industrial socket IP54 (230 V / 50 Hz) for device charging. Doors have acrylic viewing windows with safety rubber gaskets. Perforated rear panel ensures ventilation. Each compartment secured by a cylinder lock (2 keys supplied, compartments keyed differently). Power input to the cabinet via an approx. 3 m cable with Schuko plug.

Features / Characteristics

• Material: sheet steel
• Viewing window: yes (acrylic with safety rubber gasket)
• Total number of compartments: 4
• Layout: 1 column × 4 tiers
• Locking: cylinder lock (2 keys per compartment, keyed differently)
• Electrical equipment: one industrial socket IP54 230 V / 50 Hz per compartment; mains cable approx. 3 m with Schuko plug
• Rear panel: perforated for ventilation

Technical specifications

• Overall height: 1850 mm
• Overall width: 400 mm
• Overall depth: 500 mm
• Compartment internal height: 445 mm
• Compartment internal width: 370 mm
• Compartment internal depth: 480 mm
• Clear opening per compartment: 420 × 330 mm (H × W)
• Material / thickness: sheet steel
• Weight (product): 58 kg
• Socket protection rating: IP54
• Power supply: 230 V / 50 Hz (mains cable approx. 3 m with Schuko plug)
• EAN: 4051152843546
• Manufacturer / item number: 08/87S-4-AKKU
