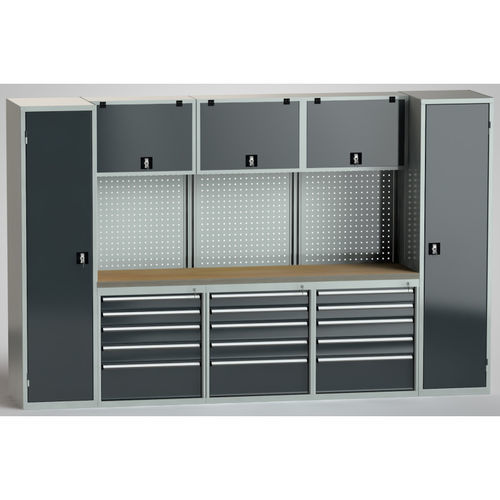

Storage cabinet SW2022-N01

for toolsworkshopwall-mounted

Description
Modular storage wall unit delivered prepped for assembly. External dimensions approx.: 2000 x 3175 x 630 mm (H x W x D). More information in the following construction and technical details.

Construction / Scope of delivery

• 3 drawer cabinets: Model BGA0800, dimensions 800 x 725 x 605 mm (H x W x D), with central lock.
• Drawer configuration (per drawer cabinet): 100VN / 100VN / 125VN / 125VN / 250VN. VN = 100% extension, load capacity 75 kg with evenly distributed load.
• 1 worktop: Beech multiplex, size 2175 x 605 x 40 mm (L x W x T), impregnated with linseed oil.
• 3 pegboards with square system hole pattern, size 1200 x 725 mm (H x W). Usable width of pegboard 644 mm. Hole pattern 10 x 10 mm, centre-to-centre 38 mm. Includes mounting brackets made from C-profiles, fixed to the drawer cabinet.
• 3 hanging cabinets: Model SFN-GI0400KO-0001XRH, dimensions 400 x 725 x 350 mm (H x W x D), with lockable flap door. Includes grid rails and one galvanised, height-adjustable shelf per cabinet with 50 kg load capacity (evenly distributed).
• 1 universal cabinet: Model SFN-AW2000-TR-5024XRB, dimensions 2000 x 500 x 630 mm (H x W x D), lockable hinged door hinged on the right, 4 adjustable galvanised shelves each 80 kg load capacity (evenly distributed).
• 1 universal cabinet: Model SFN-AW2000-TL-5024XRB, dimensions 2000 x 500 x 630 mm (H x W x D), lockable hinged door hinged on the left, 4 adjustable galvanised shelves each 80 kg load capacity (evenly distributed).

Other information
Delivered pre-assembled / ready for installation. Ready for dispatch in approx. 10 working days. Prices include VAT; a price excluding taxes is also shown (see Technical Data).

Technical specifications

• Height: 2000 mm
• Width: 3175 mm
• Depth: 630 mm
• External dimensions (H x W x D): 2000 x 3175 x 630 mm
• Weight (product meta): 445.02 kg
• Drawer load capacity (per drawer): 75 kg (evenly distributed)
• Hanging cabinet shelves: galvanised, height-adjustable, 50 kg load capacity (evenly distributed) each
• Universal cabinet shelves: galvanised, adjustable, 80 kg load capacity (evenly distributed) each
• Worktop: Beech multiplex 2175 x 605 x 40 mm, impregnated with linseed oil
• Pegboards: square system hole pattern 10 x 10 mm, centre-to-centre 38 mm, usable width 644 mm
• Included models / references: BGA0800, SFN-GI0400KO-0001XRH, SFN-AW2000-TR-5024XRB, SFN-AW2000-TL-5024XRB
