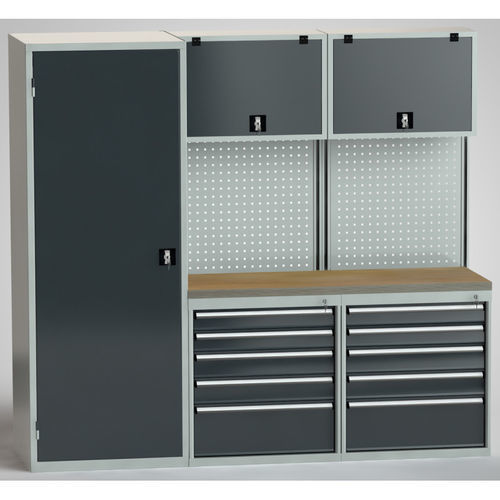

Storage cabinet SW2022-N02

floor-mounted2-drawerhinged door

Product description
Storage wall unit in modular element construction, supplied prepared for assembly.

Composition

• 2 drawer cabinets: BGA0800 — 800 x 725 x 605 mm (H x W x D); with central lock; drawer division: 100VN / 100VN / 125VN / 125VN / 250VN; VN = 100% extension; load capacity 75 kg with evenly distributed load.
• 1 worktop: beech multiplex, 1450 x 605 x 40 mm (L x W x T), impregnated with linseed oil.
• 2 perforated panels with system square perforation: 1200 x 725 mm (H x W); usable width 644 mm; perforation 10 x 10 mm, pitch 38 mm centre-to-centre; including mounting brackets made from C-profiles, fixed to the drawer cabinet.
• 2 wall cabinets: SFN-GI0400KO-0001XRH — 400 x 725 x 350 mm (H x W x D); with lockable flap door; including grid rails and one galvanized adjustable shelf each (shelf capacity 50 kg with evenly distributed load).
• 1 universal cabinet: SFN-GW2000-TL7524XRB — 2000 x 725 x 630 mm (H x W x D); with lockable hinged door (left hinged) and 4 adjustable galvanized shelves (shelf capacity 80 kg each with evenly distributed load).

Additional features
Outer dimensions approx.: 2000 x 2175 x 630 mm (H x W x D). Delivery: ready for shipment in 10 working days. Total weight: approx. 290.9 kg.

Characteristics / Technical specifications

• Height (mm): 2000
• Width (mm): 2175
• Depth (mm): 630
• Total weight: 290.9 kg
• Composition: 2 x BGA0800 drawer cabinet; 2 x SFN-GI0400KO-0001XRH wall cabinet; 1 x SFN-GW2000-TL7524XRB universal cabinet; 1 x beech multiplex worktop
• Drawers (per drawer cabinet): 100VN / 100VN / 125VN / 125VN / 250VN (VN = 100% extension)
• Load capacities: drawer VN: 75 kg (evenly distributed); wall cabinet shelf: 50 kg; universal cabinet shelf: 80 kg (each with evenly distributed load)
• Perforated panel: system square perforation (10 x 10 mm), centre-to-centre pitch 38 mm, usable width 644 mm, dimensions 1200 x 725 mm
• Worktop dimension: 1450 x 605 x 40 mm, beech multiplex, impregnated with linseed oil
• Locking/opening: central lock on drawer cabinets; lockable flap door on wall cabinets; lockable hinged door on universal cabinet
• Product condition / assembly: modular element construction, prepared for assembly
