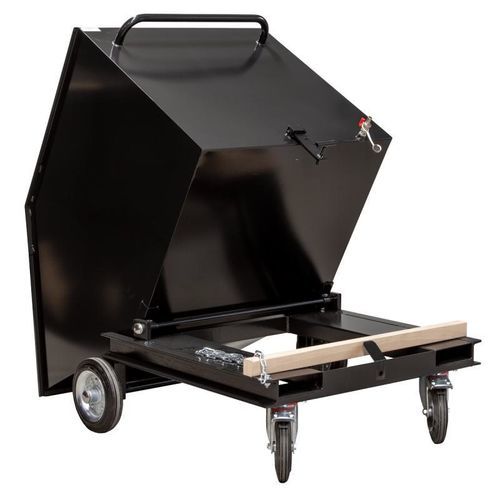

Collection trolley 8615-6050-620L

Description
Sheet steel tipping container trolley with fully welded, leak‑tight tipping container including forklift pockets, drain valve, perforated sheet sieve and locking device.
Load capacity: 500 kg
Volume: 620 L

Equipment

• Fully welded, leak‑tight tipping container
• Forklift pockets
• Drain valve
• Perforated sheet sieve
• Locking device

Dimensions
Overall dimensions (L x W x H): 1400 x 1105 x 1150 mm
Discharge edge height: 765 mm

Wheels / Tyres
Front: 2 wheels on axle, diameter 250 mm
Rear: 2 swivel castors with brake, diameter 200 mm

Available frame/body colours

• RAL 3000 - Fire red
• RAL 2004 - Pure orange
• RAL 7016 - Anthracite grey
• RAL 6011 - Reseda green
• RAL 7035 - Light grey
• RAL 5005 - Signal blue
• RAL 5010 - Gentian blue
• RAL 5012 - Light blue
• RAL 5015 - Sky blue
• RAL 9005 - Jet black

Shipping
Ready for dispatch within 10 working days.

Technical specifications

• Surface: powder coated
• Tyre type: black solid rubber
• Wheel diameters: 200 / 250 mm
• Discharge edge height (mm): 765
• Old item number: 11/6050-3
• Work steps: 0-2-2-3-9-4-6-8-10
• Volume (litres): 620
• Number of rigid wheels: 2
• Number of swivel castors: 2
• Total load capacity: 500 kg
• Height: 1150 mm
• Width: 1400 mm
• Depth: 1105 mm
• EAN: 4051152074988
