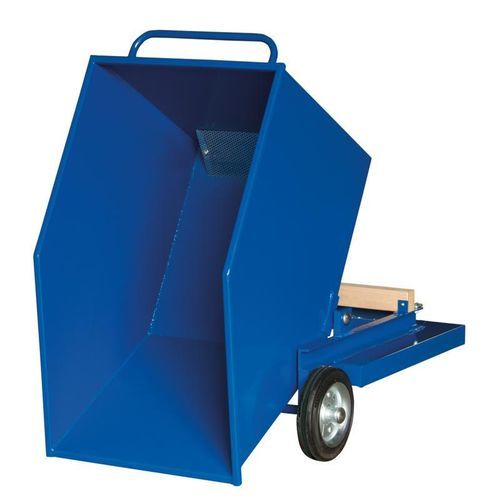

Steel self-dumping hopper 8615-6050-270L

for trolleysfor forkliftswheeled

Overview
Sheet metal box trolley with fully welded tipping container, including forklift pockets, drain tap, perforated sheet sieve and locking mechanism.
Capacity: 270 L; Load capacity: 500 kg

Dimensions and chassis
Dimensions: 1120 x 810 x 970 mm L x W x H
Discharge edge height: 665 mm
Front: 2 wheels on axle, diameter 250 mm
Rear: 1 swivel castor with brake, diameter 200 mm

Colour options

• RAL 3000 - Flame red
• RAL 2004 - Pure orange
• RAL 7016 - Anthracite grey
• RAL 6011 - Reseda green
• RAL 7035 - Light grey
• RAL 5005 - Signal blue
• RAL 5010 - Gentian blue
• RAL 5012 - Light blue
• RAL 5015 - Sky blue
• RAL 9005 - Jet black

Note
Ready for shipment in 10 working days

Technical specifications

• Surface: powder coated
• Tire type: black solid rubber
• Wheel diameter: 200/250 mm
• Discharge edge height: 665 mm
• Capacity (litres): 270
• Total load capacity: 500 kg
• Number of rigid castors: 2
• Number of swivel castors: 1
• Height: 970 mm
• Width: 1120 mm
• Depth: 810 mm
• Operating steps: 0-2-2-3-4-7-8-10
• Old article number: 11/6050-1
• Article number (SKU): 8615-6050-270L
• EAN: 4051152004565
